Section 01-10: Seats and Tracks
1994 Mustang Workshop Manual
REMOVAL AND INSTALLATION

Seat Cushion, Rear



Removal and Installation

  1. Release pin from locks by pressing release button under rear seat cushion.
  1. Pull rear safety belt and buckle (60044) through openings in rear seat cushion pad and frame (600A88) and remove rear seat cushion pad and frame .
  1. To install, reverse Removal procedure.

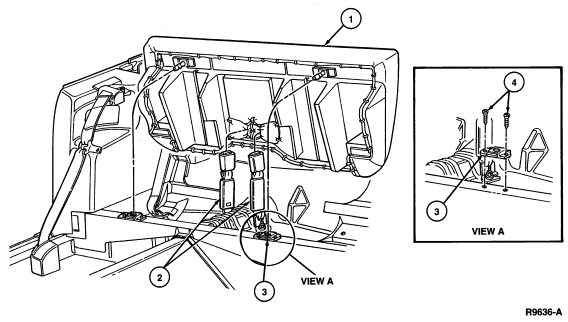

    Item Part Number Description
    1 600A88 Rear Seat Cushion Pad and Frame
    2 60044 Rear Safety Belt and Buckle
    3 — Rear Cushion Lock
    4 N610958-S36 Screw (4 Req'd)
