Section 01-10: Seats and Tracks
1994 Mustang Workshop Manual
REMOVAL AND INSTALLATION

Seat Regulator Control Switch



Removal and Installation

NOTE: Before servicing seat back control switch and housing (14C715) , check seat back control switch and housing connectors to ensure proper mating.

  1. Remove two screws from seat regulator control switch bezel (14A706) .
  1. Disconnect seat back control switch and housing connectors from body main wiring (14A005) underneath seat.
  1. Pull seat regulator control switch bezel and seat back control switch and housing from seat, feeding connectors through seat regulator control mounting bracket opening.
  1. Remove seat back control switch and housing from seat regulator control switch bezel by depressing mounting tabs located in the sides of the seat regulator control switch bezel mounting cavity with two small screwdrivers.

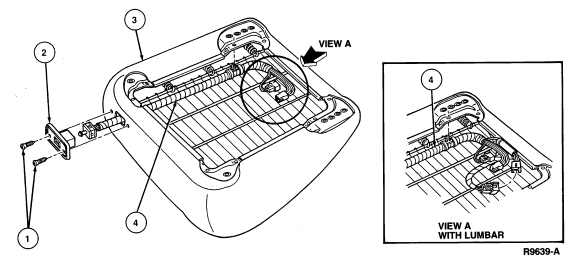

    Seat Regulator Control Switch and Wiring





    Item Part Number Description
    1 N610130-S58 Screw (2 Req'd)
    2 14A706 Seat Regulator Control Switch Bezel
    3 62900 Front Seat Cushion Cover
    4 14A701 Seat Regulator Control Switch
  1. To install, reverse Removal procedure.
