Section 01-10: Seats and Tracks
1994 Mustang Workshop Manual
REMOVAL AND INSTALLATION

Seat Track



Removal

  1. Remove seat as outlined.

    NOTE: To ease front seat track assist spring removal and installation on manual seats, adjust seat fully forward.

  1. Place seat and seat track assemblies on a clean work area and disconnect the front seat track assist spring (61828) and electrical connectors.
  1. Remove the seat track-to-seat cushion retaining screws. Remove the front seat cushion frame and spring (63100) from the tracks.
  1. On manual seats, disconnect the front seat back latch tie rod from the seat tracks.
  1. If manual seat tracks are being replaced, transfer the front seat track assist spring and front seat back latch tie rod to the new front seat track (61705) .


Installation

  1. Mount the seat tracks to the front seat cushion frame and spring . Connect front seat back latch tie rod to the two front seat tracks as they are positioned.
  1. Install the seat track-to-front seat cushion frame and spring retaining screws. Tighten to 17-23 Nm (13-17 lb-ft).
  1. Connect electrical connectors.
  1. On manual seats, connect the front seat track assist spring between the front seat tracks and front seat cushion frame and spring .
  1. Install the seat as outlined.


Manual Seat Track





Item Part Number Description
1 61726 Front Seat Track Latch Tie Rod
2 61828 Front Seat Track Assist Spring
3A N803263-S58 Screw (4 Req'd)
4 61705
5 63100 Front Seat Cushion Frame and Spring (Cobra-Part of Assembly)
A Tighten to 17-23 Nm (13-17 Lb-Ft)

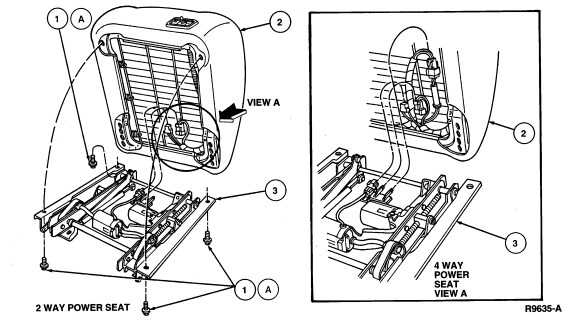

Power Seat Track





Item Part Number Description
1A N801078-S58 Screw
2 632A22 Front Seat Cushion Pad
3 61705 Front Seat Track
A Tighten to 17-23 Nm (13-16 Lb-Ft)
