There are five combinations of radio chassis (18806) available on Mustang vehicles. The five combinations are:
The base system consists of four base radio speakers (18808) .
Premium
Electronic Search Radio Chassis (ESR) Controls
Refer to Audio System Operating Guide for complete operating guidelines.

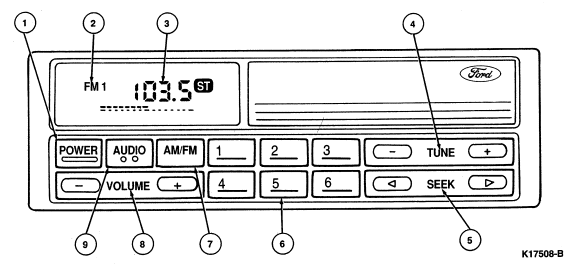

Electronic Search Radio (ESR) Chassis
| Item | Part Number | Description |
|---|---|---|
| 1 | — | Power Button |
| 2 | — | AM/FM Band Selection Indicator |
| 3 | — | Radio Station Frequency Indicator |
| 4 | — | Tuning Button |
| 5 | — | Seek Button |
| 6 | — | Memory Buttons |
| 7 | — | AM/FM Band Selector |
| 8 | — | Volume Button |
| 9 | — | Audio Button (Bass, Treble, Speaker Balance, Speaker Fade Control) |
Electronic Search Cassette (ESC) Radio Chassis Controls
Refer to Audio System Operating Guide for complete operating guidelines.

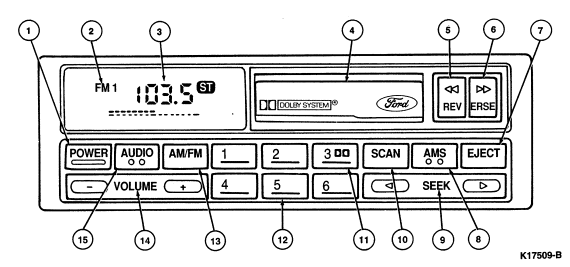

Electronic Search Cassette (ESC) Radio Chassis
| Item | Part Number | Description |
|---|---|---|
| 1 | — | Power Button |
| 2 | — | AM/FM Band Indicator |
| 3 | — | Station Indicator |
| 4 | — | Tape Opening |
| 5 | — | Reverse Button |
| 6 | — | Reverse Button |
| 7 | — | Eject Button |
| 8 | — | Automatic Music Search (AMS) Button |
| 9 | — | Seek Button |
| 10 | — | Scan Button |
| 11 | — | Dolby Button |
| 12 | — | Memory Buttons |
| 13 | — | AM/FM Band Selector Button |
| 14 | — | Volume Button |
| 15 | — | Audio Button (Bass, Treble, Speaker Balance and Speaker Fade Selection) |
Premium Analog Cassette (PAC) Radio Chassis Controls
Refer to Audio System Operating Guide for complete operating guidelines.

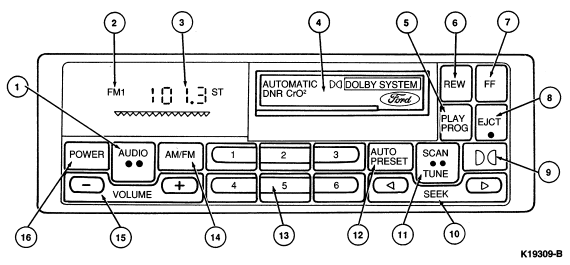

Premium Analog Cassette (PAC) Radio
| Item | Part Number | Description |
|---|---|---|
| 1 | — | Audio Button (Bass, Treble, Speaker Balance and Speaker Fade Selection) |
| 2 | — | AM/FM Band Indicator |
| 3 | — | Station Indicator |
| 4 | — | Tape Opening |
| 5 | — | Play Program Button |
| 6 | — | Reverse Button |
| 7 | — | Fast Forward Button |
| 8 | — | Eject Button |
| 9 | — | Dolby Button |
| 10 | — | Seek Button |
| 11 | — | Scan Button |
| 12 | — | Auto Preset Button |
| 13 | — | Memory Buttons |
| 14 | — | AM/FM Band Selector Button |
| 15 | — | Volume Buttons |
| 16 | — | Power Button |
Digital Audio Compact Disc Player
WARNING: THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE
HAZARD AS THE LASER BEAM USED IN THE DIGITAL AUDIO COMPACT DISC PLAYER
IS HARMFUL TO THE EYES. DO NOT ATTEMPT TO DISASSEMBLE THE
CASE. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
Refer to Audio System Operating Guide for complete operating guidelines.

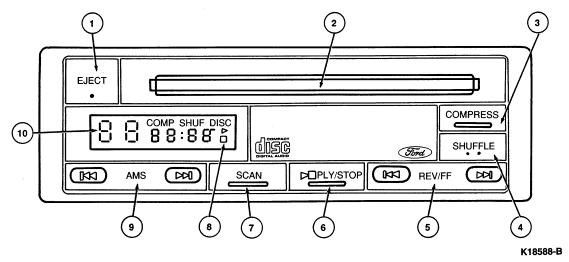

Digital Audio Compact Disc Player
| Item | Part Number | Description |
|---|---|---|
| 1 | — | Eject Button |
| 2 | — | Compact Disc Slot |
| 3 | — | Compress Button |
| 4 | — | Shuffle Button |
| 5 | — | Reverse/Fast Forward Button |
| 6 | — | Play/Stop Button |
| 7 | — | Scan Button |
| 8 | — | Play/Stop Display |
| 9 | — | Automatic Music Search (AMS) Button |
| 10 | — | Display |
