Section 11-04: Steering Column

1994 Mustang Workshop Manual

DESCRIPTION AND OPERATION

Manual Transmission

The key release button:

Functions to prevent inadvertent locking of the steering wheel (3600) .
Is located on the RH side of the steering column below the turn signal lever. The ignition switch (11572) cannot be rotated to the LOCK position until the release button is pushed.

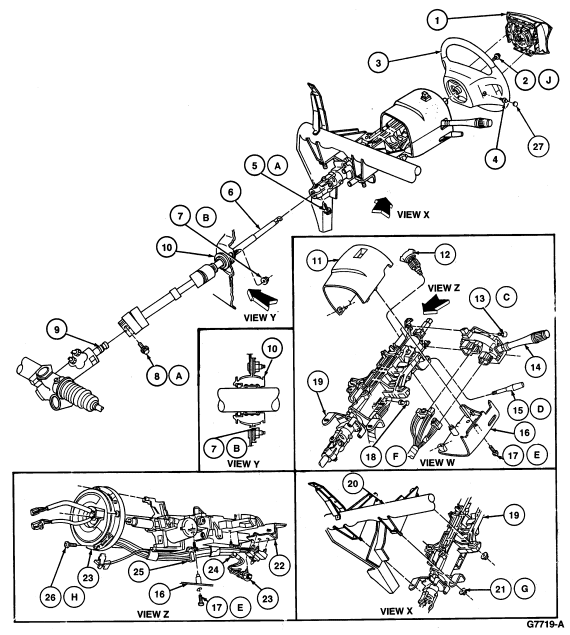

Steering Column—Exploded View

Item	Part Number	Description
1	043B13	Driver Side Air Bag Module
2J	N807493-S100	Bolt
3	3600	Steering Wheel
4	N807845-S424	Screw
5A	N806005-S100	Bolt
6	3A525	Steering Column Gear Input Shaft Coupling
7B	N806385-S2	Nut
8A	N803942-S100	Bolt
9	3504	Steering Gear
10	3C611	Steering Column Tube Boot
11	3530	Upper Steering Column Shroud
12	11A606	Lock Cylinder
13C	390345-S36	Bolt (2 Req'd)
14	13K359	Turn Signal and Windshield Wiper Switch
15D	3F609	Tilt Wheel Handle and Shank
16	3530	Lower Steering Column Shroud
17E	55929-S2	Bolt (4 Req'd)
18F	—	Bolt (Part of 3514)
19	3514	Steering Column Tube
20	—	Brake Pedal Support Bracket
21G	N806423-S56	Nut (4 Req'd)
22	14A206	Wire Connector Bracket
23	14A664	Air Bag Sliding Contact
24	14A163-B	Wiring Harness Retainer
25	14A163-A	Wiring Harness Retainer
26H	390345-S36	Bolt (3 Req'd)
27	3L518	Plug
A		Tighten to 40.3-54.7 Nm (29.7-40.3 Lb-Ft)
B		Tighten to 7.6-10.4 Nm (67.3-92.1 Lb-In)
C		Tighten to 2.1-2.9 Nm (18.6-25.7 Lb-In)
D		Tighten to 3.4-4.8 Nm (30.1-42.5 Lb-In)
E		Tighten to 0.6-1.0 Nm (5.3-8.9 Lb-In)
F		Tighten to 0.9-1.3 Nm (8.0-11.5 Lb-In)
G		Tighten to 12.7-17.3 Nm (112.4-153.1 Lb-In)
H		Tighten to 2.1-2.9 Nm (18.6-25.7 Lb-In)
J		Tighten to 34-46 Nm (25.0-34.0 Lb-Ft)
