Section 11-02: Steering System, Power | 1994 Mustang Workshop Manual |
Identification
The Ford Integral Power Rack-and-Pinion Steering Gear is a 15:1 constant
ratio.

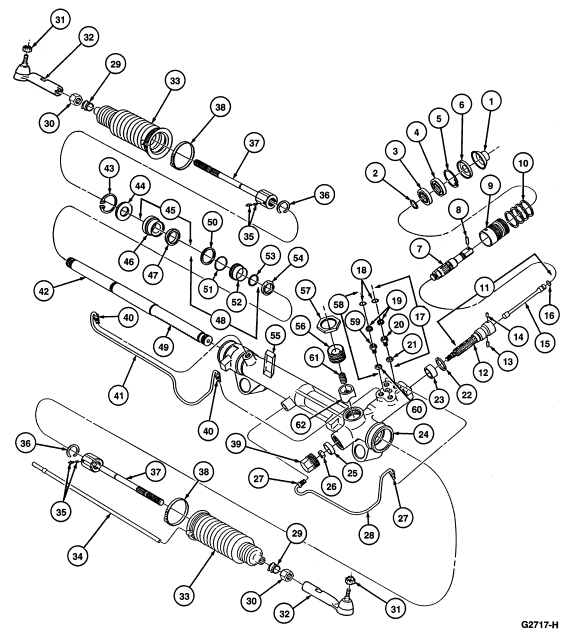

Steering Gear Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | 3E592 | Steering Gear Cover |
| 2 | 386387-S | Retaining Ring |
| 3 | 3D525 | Power Steering Gear Input Shaft Bearing |
| 4 | 3D526 | Power Steering Gear Input Shaft Seals |
| 5 | 97625-S | Snap Ring |
| 6 | 3D527 | Power Steering Gear Input Shaft Dust Seal |
| 7 | 3B668 | Shaft |
| 8 | 390920-S | Pin |
| 9 | 3B672 | Sleeve |
| 10 | 3F586 | Seal |
| 11 | 3K760 | Piston Assembly |
| 12 | 3524 | Steering Gear Input Worm Gear and Rack |
| 13 | 390887-S | Pin |
| 14 | 3F585 | Pin |
| 15 | 3419 | Bar |
| 16 | 382742-S | O-Ring |
| 17 | 3R608 | Power Steering Pressure, Return and Pump Outlet Line Connect |
| 18 | N804753-S | O-Ring |
| 19 | N804754-S | Retaining Ring |
| 20 | 3R608 | Power Steering Pressure, Return and Pump Outlet Line Connect |
| 21 | 388898-S | Seal |
| 22 | 3591 | Steering Gear Sector Shaft Housing Oil Seal |
| 23 | 3571 | Steering Gear Worm Thrust Washer |
| 24 | 3548 | Steering Gear Housing |
| 25 | 3552 | Steering Gear Worm Bearing Cup |
| 26 | 34988-S2 | Hex Locknut |
| 27 | N806162-S | O-Ring (2 Req'd) |
| 28 | 3A717 | Power Steering Right Turn Pressure Hose |
| 29 | 3C650 | Steering Gear Boot Clamp |
| 30 | 391322-S43B | Hex Nut |
| 31 | 385002-S100 | Castellated Nut |
| 32 | 3A130 | Front Wheel Spindle Connecting Rod or End |
| 33 | 3332 | Front Suspension Steering Ball Stud Dust Seal |
| 34 | 3K762 | Power Steering Gear Back Tube |
| 35 | N804152-S | Rivet (2 Req'd) |
| 36 | N807853-S | Split Washer (2 Req'd) |
| 37 | 3280 | Front Wheel Spindle Connecting Rod |
| 38 | 3K745 | Clamp |
| 39 | 3568 | Steering Gear Housing End Cover |
| 40 | N802907-S | O-Ring |
| 41 | 3A714 | Power Steering Left Turn Pressure Hose |
| 42 | 3576 | Steering Gear Housing Sector Shaft Bushing |
| 43 | 97630-S | Retaining Ring |
| 44 | 3568 | Steering Gear Housing End Cover |
| 45 | 3F644 | Steering Gear Rack Bushing |
| 46 | 3576 | Steering Gear Housing Sector Shaft Bushing |
| 47 | 3F520 | Rack Seal |
| 48 | 3575 | Steering Gear Sector Shaft Assembly |
| 49 | — | Steering Gear Sector Shaft (Part of 3575) |
| 50 | 3F521 | Steering Gear Rack Tube Seal |
| 51 | 87029-S94 | O-Ring |
| 52 | 3A544 | Piston |
| 53 | 387574-S | Retaining Ring |
| 54 | 3F520 | Rack Seal |
| 55 | 3D617 | Tag |
| 56 | 3580 | Steering Gear Sector Shaft Housing Cover |
| 57 | 3F606 | Yoke Locking Nut |
| 58 | 3R608 | Power Steering Pressure, Return and Pump Outlet Line Connect |
| 59 | 3C751 | Connector |
| 60 | 388897-S | Seal |
| 61 | 3F516 | Spring |
| 62 | 3F515 | Sector Shaft Support Yoke |
