Section 09-00: Exhaust System
1994 Mustang Workshop Manual
REMOVAL AND INSTALLATION

Exhaust Outlet Pipe Frame Bracket



Removal and Installation

  1. Raise vehicle on hoist. Refer to Section 00-02.
  1. Support exhaust system with a suitable jackstand.
  1. Depending on application, remove exhaust hanger insulators (5F262) from outlet pipe or pipes. Refer to appropriate illustration.
  1. Remove exhaust outlet pipe frame bracket retaining bolt and exhaust outlet pipe frame bracket (5260) . Refer to appropriate illustration.

    NOTE: For ease of assembly, lubricate exhaust hanger insulators with Silicone Lubricant D7AZ-19553-AA or equivalent meeting Ford specification ESR-M13P4A prior to installation of outlet pipe or pipes.

  1. To install, reverse Removal procedure. Tighten exhaust outlet pipe frame bracket retaining bolt to 14.8-20.2 Nm (11-15 lb-ft).

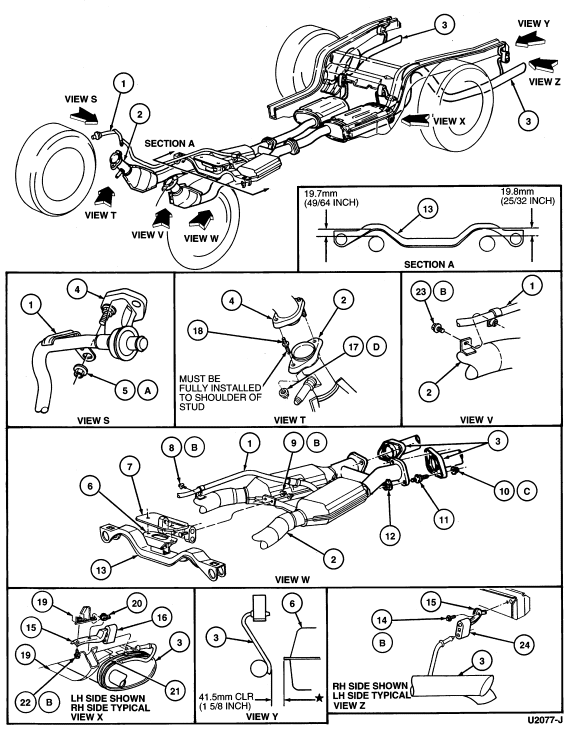

5.0L Engine Dual Exhaust





Item Part Number Description
1 5F235 Air Inlet Tube
2 5F250 Dual Converter and Pipe
3 5230 Muffler
4 9430 RH Exhaust Manifold
5A 45358-S60 Nut
6 6068 Rear Engine Support Insulator
7 5E269 Exhaust Converter Frame Bracket
8B N605785-S Bolt
9B N802356-S56 Nut (2 Req'd)
10C 45358-S60 Nut (4 Req'd)
11 388690-S2 Stud Bolt (4 Req'd)
12 388516-S100 Nut (4 Req'd)
13 6A023 Rear Engine Support
14B N802191-S2 Bolt (2 Req'd)
15 5277 Muffler Pipe Bracket (2 Req'd)
16 5F262 Exhaust Hanger Insulator (4 Req'd)
17D N806228-S100 Nut (4 Req'd)
18 N808038-S100 Stud Bolt (4 Req'd)
19 11215 Rear Floor Pan
20 N802461-S2 Nut (4 Req'd)
21 5290 Muffler Shield
22B N802455-S2 Bolt (4 Req'd)
23B N605785-S2 Bolt
24 5260 Exhaust Outlet Pipe Frame Bracket (2 Req'd)
A Tighten to 17-23 Nm (13-17 Lb-Ft)
B Tighten to 14.8-20.2 Nm (11-15 Lb-Ft)
C Tighten to 29.7-40.3 Nm (22-30 Lb-Ft)
D Tighten to 34-46 Nm (25-34 Lb-Ft)

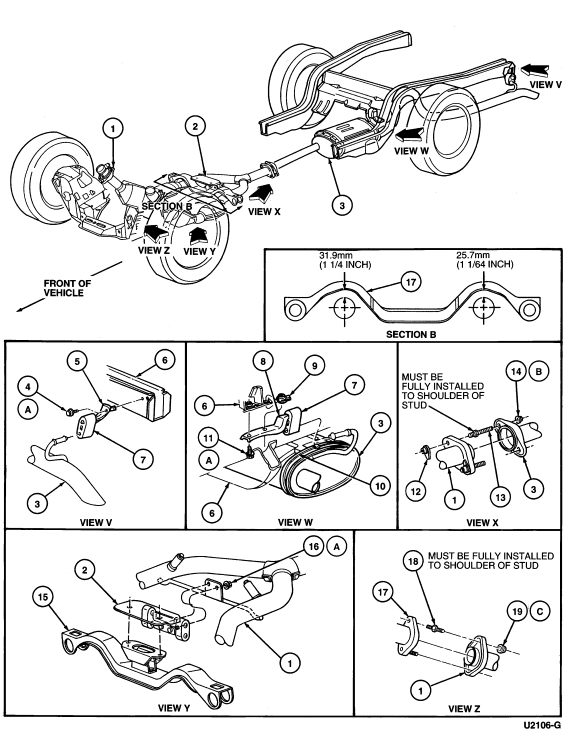

3.8L Engine Single Exhaust





Item Part Number Description
1 5F250 Dual Converter and Pipe
2 5E269 Exhaust Converter Frame Bracket
3 5230 Muffler
4A N802191-S2 Bolt
5 5260 Exhaust Outlet Pipe Frame Bracket
6 11215 Rear Floor Pan
7 5F262 Exhaust Hanger Insulator (2 Req'd)
8 5277 Muffler Pipe Bracket
9 N802461-S2 Nut (2 Req'd)
10 5290 Muffler Shield
11A N802455-S2 Bolt (2 Req'd)
12 388516-S100 Nut (2 Req'd)
13 388690-S2 Stud Bolt (2 Req'd)
14B 45358-S60 Nut (2 Req'd)
15 6A023 Rear Engine Support
16A N802356-S56 Nut (2 Req'd)
17 9430 Exhaust Manifold
18 N808038-S100 Stud Bolt (4 Req'd)
19C N806228-S100 Nut (4 Req'd)
A Tighten to 14.8-20.2 Nm (11-15 Lb-Ft)
B Tighten to 29.7-40.3 Nm (22-30 Lb-Ft)
C Tighten to 34-46 Nm (25-34 Lb-Ft)
