1994 Mustang

Section 08-02: Clutch Controls

1994 Mustang Workshop Manual

DESCRIPTION AND OPERATION

Vehicles equipped with manual transmissions (7003) are equipped with a clutch pedal position switch (CPP switch) (11A152) which operates as follows:

In order for the engine to start, the clutch pedal (7519) must be pressed all the way to the floor.
The clutch pedal position switch is located on the pedal support bracket (01508) .
The switch plunger is retained to the clutch pedal and extends as the clutch pedal is pressed.
The clutch pedal position switch is electrically connected across the ignition switch (11572) and starter motor relay coil.
When the clutch pedal is in the released (up) position, the clutch pedal position switch maintains an open starter circuit.

The clutch pedal position switch also has two other functions:

It turns off the speed control when the clutch pedal is pressed.
It provides a fuel control signal to the powertrain control module (PCM) (12A650) .

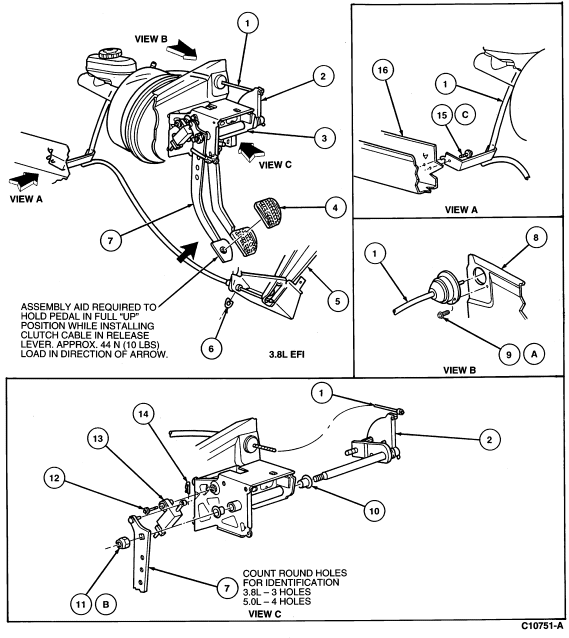

Clutch Control System

Item	Part Number	Description
1	7535	Clutch Release Lever Cable
2	7506	Clutch and Brake Pedal Pivot Shaft
13	2450	Pedal Support Bracket
4	2454	Brake Pedal Pad
5	7515	Clutch Release Shaft
6	N808135	C-Clip
7	7519	Clutch Pedal
8	01610	Dash Panel
9A	N808388-S66	Screw
10	386457-S101	Bushing (2 Req'd)
11B	N620469-S2	Nut
12	N803509	Screw
13	11A152	Clutch Pedal Position Switch
14	N803419-S2	Hair Pin Clip
15C	N610957-S2	Screw
16	10534	Front Side Rear Member
A		Tighten to 3.1-4.5 Nm (27.4-39.8 Lb-In)
B		Tighten to 34-46 Nm (25-34 Lb-Ft)
C		Tighten to 8-12.5 Nm (70.8-110.6 Lb-In)
