Section 07-01: Transmission, Automatic—AODE
1994 Mustang Workshop Manual
DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES

Output Shaft and Direct Clutch Cylinder

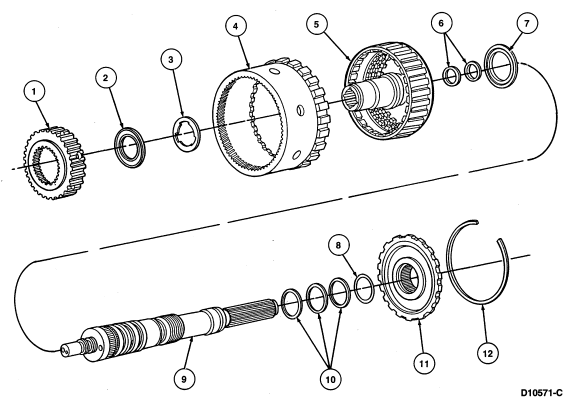

Disassembled View





Item Part Number Description
1 7F236 Direct Clutch Hub
2 7F243 Direct Clutch Inner Bearing
3 7F237 Direct Clutch Inner Bearing Washer
4 7A153 Ring Gear
5 7F283 Direct Clutch Cylinder
6 7F274 Output Shaft to Direct Clutch Cylinder Seal
7 7F240 Direct Clutch Bearing and Race
8 87054-S96 Seal
9 7060 Output Shaft
10 7F273 Output Shaft to Case Seal
11 7D164 Output Shaft Hub
12 7064 Snap Ring


Disassembly

  1. Remove snap ring retaining the output shaft hub (7D164) to ring gear (7A153).



  1. Separate output shaft (7060) from ring gear.



  1. Remove snap ring retaining output shaft hub. Slide output shaft hub off rear of output shaft.



     CAUTION: The output shaft has four grooves but only three are used. The illustration shows the correct locations.





  1. Remove three output shaft to case seals (7F273) and output shaft o-ring seal.



  1. Remove two output shaft to direct clutch cylinder seals (7F274) from the output shaft. Note the direction of the output shaft to direct clutch cylinder seals.
