Section 07-01: Transmission, Automatic—AODE
1994 Mustang Workshop Manual
DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES

Pump and Intermediate Clutch Piston

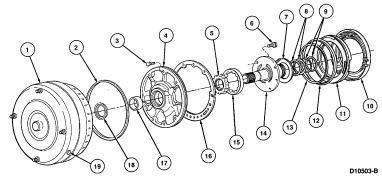

Disassembled View





Item Part Number Description
1 7902 Torque Converter
2 7A248 Front Pump Seal
3 N605789-S100 Bolt (7 Req'd)
4 7A106 Front Pump Assy
5 7H169 Oil Pump Inner Gear
6 N605789-S52 Bolt (5 Req'd)
7 7D014 Thrust Washer
8 7D020 Reverse Clutch Cylinder Seal
9 7D019 Forward Clutch Cylinder Seals
10 7F222 Intermediate Clutch Retainer Spring Assy
11 7E005 Intermediate Clutch Piston
12 7F224 Intermediate Clutch Piston Outer Seal
13 7F225 Intermediate Clutch Piston Inner Seal
14 7A108 Front Pump Stator Support
15 7H169 Oil Pump Outer Gear
16 7A136 Oil Pump Gasket
17 7B258 Front Oil Pump Bushing
18 7A248 Front Pump Inner Seal
19 87650-S2 Converter Drain Plug


Disassembly

SPECIAL SERVICE TOOL(S) REQUIRED
Description Tool Number
Front Pump Seal Replacer T63L-77837-A
Seal Protector T80L-77005-A

  1. Remove the No. 1 thrust washer (7D014).



  1. Using a 10mm socket, remove five front pump support bolts. Separate front pump support (7A108) and pump assembly.



    NOTE: The reverse clutch rings are larger than the forward clutch rings.

  1. Remove two each of reverse clutch cylinder seals (7D020) and forward clutch seals.



  1. Remove inner and outer pump gears from pump body.



  1. Remove spring retainer assembly by carefully dislodging the tabs.



  1. Remove intermediate clutch piston (7E005) and intermediate clutch piston inner seal (7F225) and intermediate clutch piston outer seal (7F224).



  1. Remove front oil pump seal (7A248) and discard.
