Section 07-01: Transmission, Automatic—AODE
1994 Mustang Workshop Manual
DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES

Main Control Valve Body

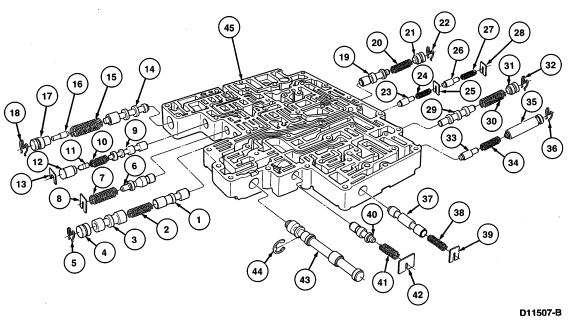

Exploded View





Item Part Number Description
1 — 1-2 Shift Valve (Part of 7A100)
2 — 2-3 Shift Valve Spring (Part of 7A100)
3 — 2-3 Shift Valve (Part of 7A100)
4 — Valve Retaining Plug (Part of 7A100)
5 — Valve Plug Retainer (Part of 7A100)
6 — Pressure Regulator Valve (Part of 7A100)
7 — Pressure Regulator Valve Spring (Part of 7A100)
8 — Spring Retaining Plate (Part of 7A100)
9 — Bypass Clutch Control Valve (Part of 7A100)
10 — Bypass Clutch Control Valve Spring (Part of 7A100)
11 — Bypass Clutch Control Valve Plunger (Part of 7A100)
12 — Bypass Clutch Control Plunger Sleeve (Part of 7A100)
13 — Control Valve Plate (Part of 7A100)
14 — Main Regulator Valve (Part of 7A100)
15 — Main Oil Pressure Regulator Valve Spring (Part of 7A100)
16 — Main Oil Pressure Booster Valve (Part of 7A100)
17 — Main Oil Pressure Booster Valve Sleeve (Part of 7A100)
18 — Valve Plug Retainer (Part of 7A100)
19 — Pressure Regulator Valve (Part of 7A100)
20 — Pressure Regulator Valve Spring (Part of 7A100)
21 — Valve Retainer Plug (Part of 7A100)
22 — Valve Plug Retainer (Part of 7A100)
23 — Capacity Modulator Valve (Part of 7A100)
24 — Capacity Modulator Valve Spring (Part of 7A100)
25 — Spring Retaining Plate (Part of 7A100)
26 — Capacity Modulator Valve (Part of 7A100)
27 — Capacity Modulator Valve Spring (Part of 7A100)
28 — Spring Retaining Plate (Part of 7A100)
29 — 3-4 Shift Valve (Part of 7A100)
30 — 3-4 Shift Valve Spring (Part of 7A100)
31 — Valve Retainer Plug (Part of 7A100)
32 — Valve Plug Retainer (Part of 7A100)
33 — Capacity Modulator Valve (Part of 7A100)
34 — Capacity Modulator Valve Spring (Part of 7A100)
35 — Valve Retainer Plug (Part of 7A100)
36 — Valve Plug Retainer (Part of 7A100)
37 — 2-3 Backout Valve (Part of 7A100)
38 — 2-3 Backout Valve Spring (Part of 7A100)
39 — Spring Retaining Plate (Part of 7A100)
40 — Pressure Regulator Valve (Part of 7A100)
41 — Pressure Regulator Valve Spring (Part of 7A100)
42 — Spring Retaining Plate (Part of 7A100)
43 — Control Manual Valve (Part of 7A100)
44 — Retaining Ring (Part of 7A100)
45 7A100 Main Control Valve Body Assy


Disassembly

  1. Remove retaining bolt and shift solenoid bracket.
  1. Remove shift solenoid (7G484) assembly and torque converter clutch solenoid (TCC solenoid) (7G136) by pulling straight up.



  1. Turn main control valve body (7A100) over and remove 11 bolts retaining reinforcement and separator plates.



  1. Remove separator plate and gaskets. Discard gaskets.



  1. Note location and remove coasting booster valve shuttle balls (7E195). Remove filter.



  1. Remove converter drain back valve.
  1. Remove four valve body cover plate bolts and two guide pin bolts.



  1. Remove main control cover (7G004).





Assembly

  1. Install main control cover.
  1. Install two guide pin bolts and four valve body cover retaining bolts. Tighten guide pin bolts to 22-26 Nm (190-230 lb-in) and valve body cover retaining bolts to 11-15 Nm (100-130 lb-in) in sequence shown.



  1. Install coasting booster valve shuttle balls, converter drain back valve and filter.



  1. Install separator plate and new gaskets.
  1. Install reinforcement plates. Tighten retaining bolts to 11-15 Nm (100-130 lb-in).



  1. Inspect O-rings on solenoids for damage. Install shift solenoid assembly and torque converter clutch solenoid.



  1. Install bracket and retaining bolt. Tighten to 9-11 Nm (80-100 lb-in).
