Section 07-01: Transmission, Automatic—AODE
1994 Mustang Workshop Manual
DESCRIPTION

Description

The AODE transmission has the following features:

The transmission uses a Ravigneaux-style double-pinion compound gearset to produce four forward speeds and reverse. Two bands, two one-way roller clutches and four friction clutches are used to hold or drive various planetary gearset members.





Transmission Identification

All vehicles are equipped with a Vehicle Certification Label, affixed to the LH (driver's) side door lock post.

Refer to the code in the space marked TR on the Vehicle Certification Label for proper transmission identification.

For additional information such as: model, service ID level or build date, refer to the transmission service ID tag which is attached to transmission case (7005) .

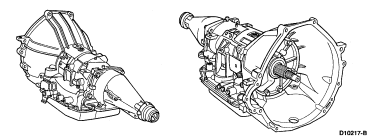

Transmission, Automatic, AODE

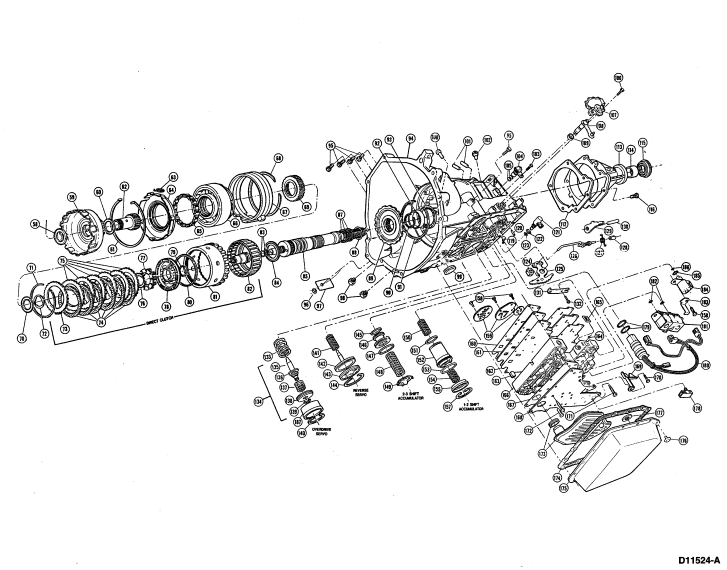

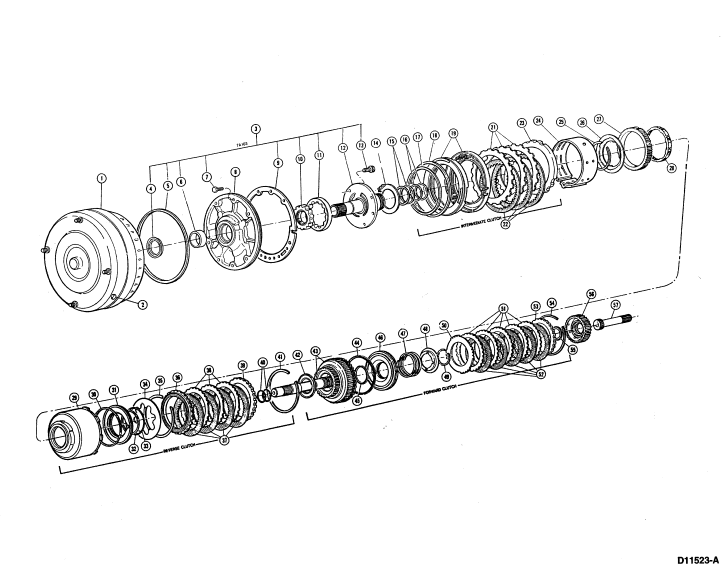

Transmission, Automatic, AODE (Continued)





Item Part Number Description
1 7902 Torque Converter
2 87650-S2 1/8-27 Dryseal Converter Drain Plug
3 7A103 Front Pump Support and Gear
4 7A248 Front Oil Pump Seal
5 — Front Oil Pump O-Ring (Part of 7A248)
6 7B258 Front Oil Pump Bushing
7 N605789-S100 M8-1.25 x 35 Hex Hd Bolt (7 Req'd)
8 7A106 Front Oil Pump Body Assy
9 7A136 Oil Pump Gasket
10 7H169 Oil Pump Inner Gerotor Gear
11 — Oil Pump Outer Gerotor Gear (Part of 7H169)
12 7A108 Front Pump Support
13 N605787-S52 M8 x 1.25 x 25 Hex Flg Hd Bolt (5 Req'd)
14 7D014 Thrust Washer
15 7D020 Reverse Clutch Cylinder Seal (2 Req'd)
16 7D019 Forward Clutch Cylinder Seal (2 Req'd)
17 7F225 Intermediate Clutch Piston Inner Seal
18 7F224 Intermediate Clutch Piston Outer Seal
19 7E005 Intermediate Clutch Piston
20 — Not Used
21 7B442 Intermediate External Spline Clutch Plate (Steel)
22 7B164 Intermediate Clutch Internal Spline (Friction) Plate Assy
23 7B066 Clutch Pressure Plate
24 7F196 Overdrive Band
25 391267-S 3-21/64 Retaining Type Su Ext. (Ret. 7F262 to 7F215) Ring
26 7D191 Overrunning Clutch Retainer and Springs
27 7F221 Intermediate Clutch Hub
28 7A089 Intermediate One-Way Clutch
29 7D044 Reverse Clutch Drum
30 7D403 Reverse Clutch Piston Outer Seal
31 7D402 Reverse Clutch Piston
32 7D404 Reverse Clutch Piston Small Seal
33 7D256 Reverse Clutch Piston Spring Pressure Ring
34 7B070 Reverse Clutch Piston Spring
35 7A577 Clutch Pressure Plate Retainer Snap Ring
36 7B066 Clutch Pressure Plate
37 7B164 Reverse Clutch Internal Spline (Friction) Plate
38 7B442 Reverse Clutch External Spline Clutch Plate (Steel)
39 7B066 Clutch Pressure Plate
40 7B497 Input Shaft Seal (2 Req'd)
41 7D483 Clutch Pressure Plate Retainer Snap Ring
42 7A166 (No. 2) Forward Clutch Bearing and Race Assy
43 7F207 Forward Clutch Cylinder and Shaft
44 7A548 Forward Clutch Piston Outer Seal
45 7C099 Direct Clutch Inner Seal
46 7A262 Clutch Piston
47 7A480 Forward Clutch Piston Return Spring
48 7A527 Clutch Piston Spring Retainer
49 388099-S 1-59/64 Retaining Snap Ring
50 7E085 Rear Clutch Pressure Spring
51 7B442 Forward Clutch External Spline (Steel) Plate
52 7B164 Forward Clutch Internal Spline (Friction) Plate
53 7B066 Clutch Pressure Plate
54 7D483 Clutch Pressure Plate Retainer Snap Ring
7F231 Forward Clutch Hub Front Bearing
56 7B067 Rear Clutch Hub
57 7F351 Input Shaft
58 7C096 (No. 4) Forward Clutch Hub Bearing and Race Assy
59 7A019 Reverse Clutch Gear and Shell
60 7C096 (No. 5) Forward Clutch Sun Gear Bearing and Race Assy
61 388501-S 7-7/32 Center Support Retaining Ring
62 7A399 Primary Sun Gear
63 7F277 Case to Planet Support Spring
64 7A130 Rear Planet Support
65 7A089 Planetary One-Way Clutch
66 7A398 Forward Planetary Assy
67 7D095 Reverse Clutch Band
68 377437-S Retaining Ring (.058 Thick)
69 7F236 Direct Clutch Hub
70 7F243 Direct Clutch Inner Bearing
71 7D483 Clutch Pressure Plate Retainer Snap Ring
72 7F237 Direct Clutch Inner Bearing Washer
73 7B066 Clutch Pressure Plate
74 7B164 Direct Clutch Internal Spline (Friction) Plate
75 7B442 Direct Clutch External Spline Clutch Plate
76 388104-S 1-19/32 Retaining Ring
77 7F235 Direct Clutch Support and Spring
78 7A262 Clutch Piston
79 7C099 Direct Clutch Inner Seal
80 7A548 Direct Clutch Piston Outer Seal
81 7A153 Ring Gear
82 7F283 3-4 Clutch Cylinder
83 7F274 Output Shaft to Direct Clutch Cylinder Seal
84 7F240 Direct Clutch Hub Bearing and Race
85 7060 Output Shaft
86 — Not Used
87 7F273 Output Shaft to Case Seal
88 87054-S94 O-Ring Seal
89 7D164 Output Shaft Hub
90 97713-S 1-13/16 Retaining Snap Ring
91 7C122 Snap Ring
92 7025 Case Bearing
93 7F242 Case Rear Bearing
94 7005 Case
95 390318-S100 1/8-27 Dryseal Tapered Pipe Plug (5 Req'd)
96 373907-S2 1/4 Spring Nut
97 — Identification Tag
98 7D273 Oil Tube Connector
99 7N171 Converter Housing Access Plug
100 7F295 Overdrive Band Anchor Pin
101 388142-S Reverse Band Anchor Pin
102 7034 Vent
103 N605771-S2 M6-1.0 x 14 Hex Flg Hd Bolt
104 7H103 Output Shaft Speed Sensor Assy
105 7Z101 Output Shaft Speed Sensor Seal (2 Req'd)
106 N806933-S100 M6-1.0 x 25mm Bolt and Washer Assy (2 Req'd)
107 7F293 Manual Lever Position (MLP) Sensor
108 7A256 Manual Control Lever
109 7B498 Manual Control Lever Oil Seal
110 — Not Used
111 — Not Used
112 7086 Extension Housing Gasket
113 7A039 Extension Housing
114 7A034 Extension Housing Bushing
115 7052 Input Shaft and Extension Housing Seal
116 N803747-S100 M8-1.25 x 30 Bolt (6 Req'd)
117 — Not Used
118 — Not Used
119 7E242 Oil Screen
120 7B210 Manual Lever Shaft Retaining Pin
121 7G383 Electronic Pressure Control Solenoid
122 7Z101 Turbine Speed Sensor Seal
123 7Z383 0.426 x 0.070 O-Ring Seal
124 N800287-S51 M14 x 1.5 Hex Intermediate Detent Lever Nut
125 7A115 Manual Valve Detent Lever
126 7A232 Parking Lever Actuating Rod
127 7D070 Parking Pawl Return Spring
128 — Park Rod Guide Cup (Part of 7A232
129 7A441 Parking Pawl
130 7D071 Parking Pawl Shaft
131 7E332 Manual Valve Detent Spring
132 N606022-S1000 M6-1.0 x 40 Hex Flange Head Bolt (13 Req'd)
133 7F201 Overdrive Servo Piston Return Spring
134 7H188 Overdrive Servo Piston Assy
135 — Rod (Part of 7H188)
136 — Rod Cap (Part of 7H188)
137 — Spring (Part of 7H188)
138 — Cover (Part of 7H188)
139 — Clip (Part of 7H188)
140 7384-S Accumulator Piston Retaining Ring
141 7D031 Reverse Band Servo Spring
142 7D189 Reverse Band Servo Piston and Rod
143 7D036 Reverse Band Servo Cover
144 388215-S100 3-13/16 Internal Retaining Ring
145 7F250 Upper Accumulator Seal
146 7F251 Accumulator Piston
147 7F249 Lower Accumulator Seal
148 7F285 Accumulator Piston Spring
149 7B264 Rear Band Servo Spring Retainer
150 7F284 1-2 Shift Spring
151 7F248 1-2 Shift Accumulator Piston Seal
152 7F251 Accumulator Piston
153 7F249 1-2 Shift Lower Accumulator Seal
154 7G267 1-2 Accumulator Outer Spring
155 7H300 1-2 Accumulator Cover and Seal Assy
156 — Not Used
157 7384 Accumulator Piston Retaining Ring
158 N605517-S1000 M6-1.0 x 16 Hex Head Bolt (12 Req'd)
159 — Valve Body Reinforcing Plate (Part of 7A100)
160 7C155 Main Control to Case Gasket
161 — Valve Body Separating Plate (Part of 7A100)
162 7D100 Main Control to Case Gasket
163 7H174 Converter Drainback Valve
164 7E195 Coasting Booster Valve Shuttle Ball
165 7H187 Solenoid Pressure Supply Screen
166 7A100 Main Control Valve Body
167 7H173 Valve Body Cover Plate Gasket
168 — Valve Body Cover Plate (Part of 7A100)
169 7H111 Solenoid Retainer
170 N807179-S1000 M6-1.0 x 52 Hex Flg Hd Bolt (12 Req'd)
171 N806381-S1300 M8-1.25 x 46 Hex Shldr Pilot Bolt (2 Req'd)
172 N807178-S1000 M6-1.0 x 18 Hex Head Bolt (4 Req'd)
173 7A098 Oil Filter and Seal Assy
174 7A191 Oil Pan to Case Gasket
