Section 06-03: Brakes, Front Disc | 1994 Mustang Workshop Manual |

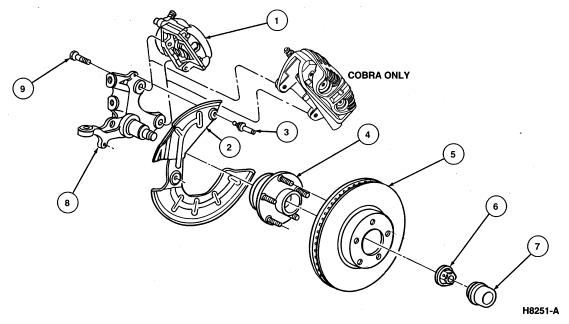

The front disc brake rotor shield (2K005) :
| Item | Part Number | Description |
|---|---|---|
| 1 | 2B121 | Front Disc Brake Caliper |
| 2 | 2K004 | Front Disc Brake Rotor Shield |
| 3 | N806002-S100 | Rivet |
| 4 | 1104 | Wheel Hub |
| 5 | 1125 | Front Disc Brake Rotor |
| 6 | 3B477 | Front Axle Wheel Hub Retainer |
| 7 | 1N135 | Front Hub Cap Grease Seal |
| 8 | 3105 | Front Wheel Spindle |
| 9 | N807146-S100 | Caliper Anchor Plate Bolt (2 Req'd) |
