Axle Identification Tag

The Plant Code on the identification tag is to be used as the official service identifier.

The Plant Code for a particular rear axle housing (4010) assembly will not be duplicated. In addition, the Plant Code will not change as long as that particular rear axle housing assembly never undergoes an external design change.

If, however, an internal design change takes place in the same rear axle housing during the production life of the axle and that internal change affects service parts, interchangeability, a dash and numerical suffix will be added to the Plant Code.

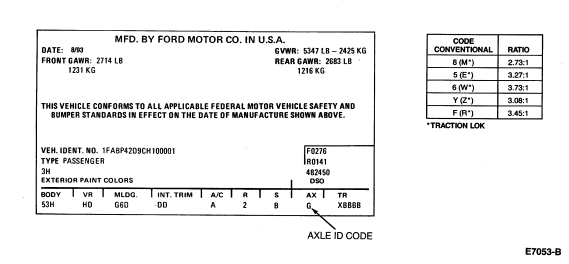

The Vehicle Certification Label (V.C. Label) is affixed on the LH front door lock panel or door pillar. The V.C. Label contains the rear axle housing ID code in the lower RH corner.
