Section 04-02: Suspension and Wheel Hubs, Rear
1994 Mustang Workshop Manual
REMOVAL AND INSTALLATION

Axle Bumper—Pinion Noise Center



5.0L Engine

Removal

  1. Raise vehicle on a hoist. Refer to Section 00-02.
  1. Remove three bracket retaining bolts.
  1. Remove rear axle bumper (4730) and rear axle bumper bracket (4731) assembly.
  1. Remove bumper-to-bracket retaining nut. Remove rear axle bumper from rear axle bumper bracket .


Installation

  1. Position rear axle bumper to rear axle bumper bracket and install retaining nut. Tighten to 16-27 Nm (12-20 lb-ft).
  1. Align rear axle bumper and rear axle bumper bracket assembly with J-nuts in floorpan.
  1. Install three bracket retaining bolts. Tighten to 10-16 Nm (8-11 lb-ft).
  1. Lower vehicle.

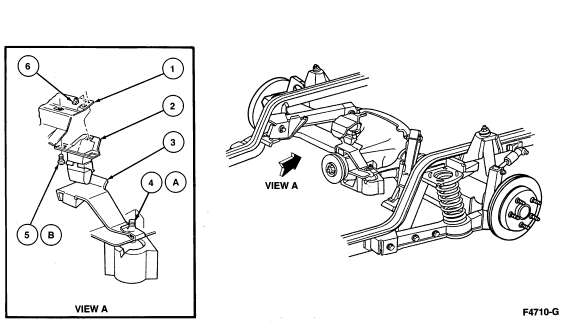

Axle Bumper





Item Part Number Description
1 — Floorpan
2 4905 Rear Axle Differential Carrier Bumper Bracket
3 4731 Rear Axle Bumper Bracket
4A 56541-S56 J-Nut (2 Req'd)
5B N605891-S56 Bolt (3 Req'd)
6 N804272-S56 Nut (3 Req'd)
A Tighten to 41-54 Nm (31-39 Lb-Ft)
B Tighten to 10-16 Nm (8-11 Lb-Ft)
