Section 04-02: Suspension and Wheel Hubs, Rear
1994 Mustang Workshop Manual
REMOVAL AND INSTALLATION

Axle Dampers



Handling Suspension

Removal

  1. Raise vehicle on a hoist and support the rear axle housing (4010) . Refer to Section 00-02.
  1. Remove wheel (1007) and tire assembly.
  1. Remove rear axle driveline vibration damper front retaining pivot bolt.
  1. Remove axle damper rear retaining nut. Remove rear axle drive line vibration damper (4A263) and washers.


Installation

  1. Install washers, rear axle drive line vibration damper and nut on rear mounting bracket. Do not tighten nut.
  1. Position rear axle drive line vibration damper in front bracket and install pivot bolt into weld nut on the axle bracket.
  1. Tighten rear retaining nut to 76-103 Nm (57-75 lb-ft).
  1. Tighten front retaining bolt to 76-103 Nm (57-75 lb-ft).
  1. Install wheel and tire assembly.
  1. Lower vehicle.

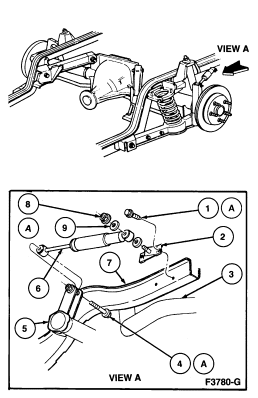

Axle Damper





Item Part Number Description
1A N605933-S7 Bolt (4 Req'd)
2 4A491
4A490 		Bracket LH
Bracket RH
3 — Exhaust
4A N803486-S56 Bolt (2 Req'd)
5 — Axle
6 4A489 Axle Damper (2 Req'd)
7 — Sidemember
8A N800937-S151 Nut (2 Req'd)
9 N801616-S Washer (4 Req'd)
A Tighten to 76-103 Nm (57-75 Lb-Ft)
