Secondary Air Injection Diverter (AIRD) Valve

Removal and Installation

1. Disconnect manifold vacuum control tube (9G469) from secondary air injection diverter valve.

2. Loosen hose clamps at intake and both exhaust ports of secondary air injection diverter valve and remove hoses.

3. Remove secondary air injection diverter valve from vehicle.

4. To install, reverse Removal procedure. Tighten hose clamps to 1.4-2.3 Nm (12-20 lb-in).

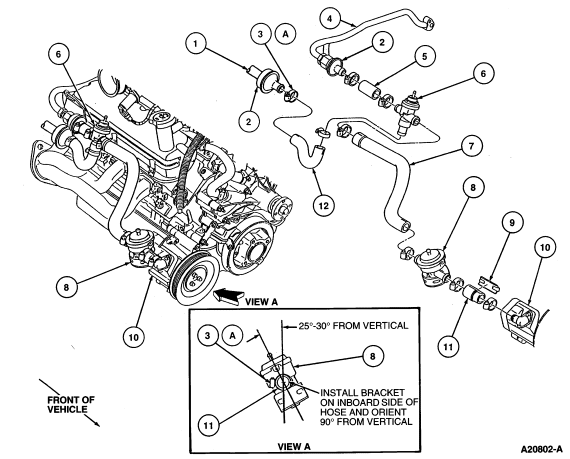

   Item	Part Number	Description
   1	5F235	Air Inlet Tube
   2	9A487	Secondary Air Injection Check Valve (2 Req'd)
   3A	383523-S100	Hose Clamp (8 Req'd)
   4	9B449	Secondary Air Injection Manifold Tube
   5	381445-A032A	Hose
   6	9F491	Secondary Air Injection Diverter Valve
   7	9G424	Secondary Air Injection Control Valve Hose
   8	9B289	Secondary Air Injection Bypass Valve
   9	9B290	Secondary Air Injection Bypass Valve Bracket
   10	9A486	Secondary Air Injection Pump
   11	9F287	Hose
   12	9G459	Secondary Air Injection Control Valve to Check Valve Hose
   A		Tighten to 1.4-2.3 Nm (12-20 Lb-In)
