Section 03-03: Engine Cooling
1994 Mustang Workshop Manual
CLEANING AND INSPECTION

Cooling System, Draining, Filling and Bleeding

  1. Bring engine to normal operating temperature and turn engine off. With cooling system under pressure, inspect cooling system hoses and clamped hose connections for leaks, excessive deterioration or contact wear. Inspect radiator installation retention. Note any discrepancies and proceed.
  1. Drain engine coolant as follows:

     WARNING: NEVER REMOVE RADIATOR CAP (8100) OR COOLING SYSTEM CAP UNDER ANY CONDITIONS WHILE ENGINE IS OPERATING. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR DAMAGE TO THE COOLING SYSTEM OR ENGINE.

     WARNING: TO AVOID BURNS FROM SCALDING COOLANT OR STEAM, USE EXTREME CARE WHEN REMOVING THE RADIATOR CAP .

    1. Switch the engine OFF and wait until cool. If radiator (8005) is still hot, carefully wrap a thick cloth around the radiator cap and rotate slowly to the first stop. Step back until the pressure is released.
    1. Then press down on the radiator cap and rotate until free. Remove the radiator cap .
    1. Open radiator drain cock (8115) and remove the cylinder block drain plug(s) to drain the coolant system.
    1. Disconnect radiator overflow hose (8075) from radiator filler neck connection. Remove radiator coolant recovery reservoir (8A080) as outlined and empty fluid. Flush radiator coolant recovery reservoir with clean water, drain and reinstall radiator coolant recovery reservoir and radiator overflow hose and clamp to radiator filler neck.
    1. Correct, service or replace any components found to be malfunctioning in Step 1.

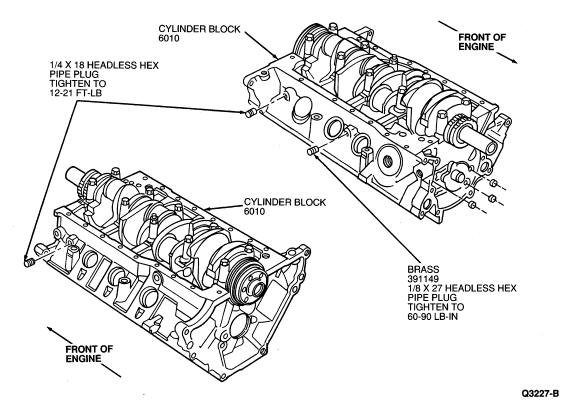

V-8 Shown, V-6 Similar




  1. Refill engine cooling system as follows:
    1. Close radiator drain cock and install cylinder block drain plug(s).
    1. When refilling the engine cooling system, use equal parts of water and antifreeze as follows:

      Coolant Specification: Use only a permanent-type coolant such as Premium Cooling System Fluid E2FZ-19549-AA or B (in Canada, Motorcraft CXC-8-B) or equivalent meeting Ford specifications ESE-M97B44-A and ESE-M97B43-A.

      Freeze protection may also be checked by using either a Rotunda Battery and Antifreeze Tester 021-00046 or equivalent or a Hydrometer. A 50/50 mix of coolant concentrate and water will provide approximately -37°C (-35°F) protection and provide the necessary anti-corrosion protection.

    1. Fill radiator until coolant level in the radiator reaches the radiator filler neck seat.

      Refill the radiator to approximately 0 to 5 cm (0 to 2 inches) below the filler neck seat.

       WARNING: TO AVOID THE POSSIBILITY OF PERSONAL INJURY OR DAMAGE TO THE VEHICLE, DO NOT OPERATE ENGINE WITH HOOD (16612) OPEN UNTIL FAN BLADE (8600) HAS BEEN FIRST EXAMINED FOR POSSIBLE CRACKS AND SEPARATION.

  1. Operate engine until water thermostat (8575) opens and the radiator upper hose becomes hot.
  1. Stop the engine and add coolant up to the filler neck seat.
  1. Install radiator cap .
  1. Add a 50/50 mixture of anti-freeze solution and water to the FULL HOT mark on the radiator coolant recovery reservoir , to provide adequate cooling system fill. Install radiator cap , (if equipped).
