Section 01-10: Seats and Tracks
1994 Mustang Workshop Manual
DIAGNOSIS AND TESTING

Electrical Schematics

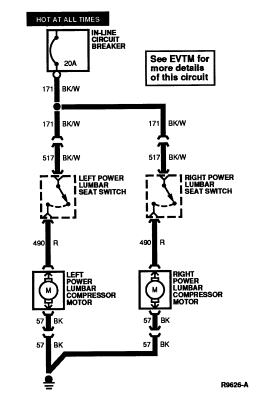

Power Lumbar Seats

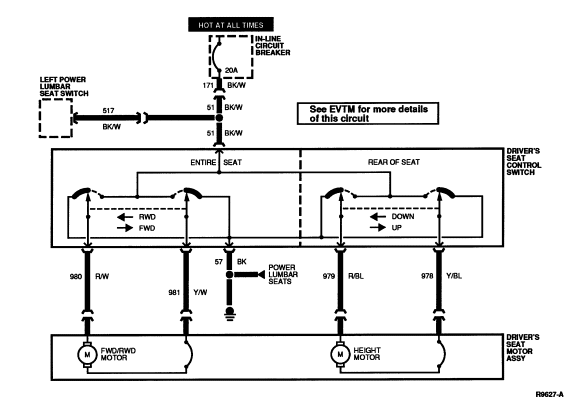

Power Seats






Connector End Views






Pin Number Circuit Circuit Function
1 — Not Used
2 980 (R/W) Seat Moves Rearward
3 — Not Used
4 979 (R/BL) Seat Moves Downward
5 57 (BK) Ground
6 978 (Y/BL) Seat Moves Upward
7 51 (BK/W) Supply
8 981 (Y/W) Seat Moves Forward
9 — Not Used







Pin Number Circuit Circuit Function
1 980 (R/W) Seat Moves Rearward
2 981 (Y/W) Seat Moves Forward
3 978 (Y/BL) Seat Moves Upward
4 979 (R/BL) Seat Moves Downward
