1994 Mustang

Section 01-09: Mirrors, Rear View

1994 Mustang Workshop Manual

DESCRIPTION AND OPERATION

Power

A RH and LH electrically powered outside rear view mirror (17682) is standard.

The outside rear view mirror control (17B676) is located on the front door trim panel (23942) . One outside rear view mirror control operates both RH and LH outside rear view mirrors . Move the outside rear view mirror control to the LH or RH position to control the outside rear view mirror requiring adjustment.
The outside rear view mirror control is designed to tilt the outside rear view mirror up, down, left or right by pressing the push button on the arrow indicating the desired direction.

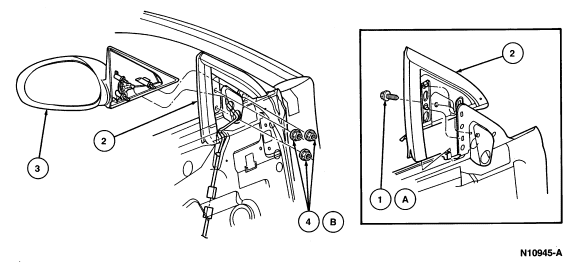

Outside Rear View Mirror

Item	Part Number	Description
1A	56910-S36	Screw
2	219A62	Door Window Opening Front Outer Filler Assy
3	17682	Outside Rear View Mirror-17682
4B	N621906-S36	Nut (3 Req'd)
A		Tighten to 1.4-2.2 Nm (13-17 Lb-In)
B		Tighten to 5.9-8.1 Nm (53-71 Lb-In)
