Mouldings, Exterior and Ornaments

Tape, Pressure Sensitive

Removal

1. Completely clean sheet metal surface area around moulding with isopropyl alcohol and a clean, soft cloth.

2. Before removing the moulding or emblem, mark its location on top and at each end with masking tape.

   NOTE: Heating the moulding, emblem or sheet metal will increase adhesion making it hard to remove. Cold temperatures of zero and below allow easier removal.

3. When removing mouldings, use a nylon wedge. Position the nylon wedge between the moulding and sheet metal and pull the moulding away with steady tension.

4. Once a few inches of moulding are free, grip moulding with both hands and pull it slowly toward the front of the vehicle. Be careful not to damage the paint or sheet metal.

5. Remove and replace one moulding at a time.

6. Grip tape at one end, lifting and pulling away slowly about 1/2 inch at a time. Small pieces can be removed by rolling with your thumb across the sheet metal surface.

7. All of the adhesive tape will not come off with the moulding or emblem. The recommended method to remove the tape from the metal surface is with 3M Scotch-Brite Moulding Adhesive and Stripe Removal Disc, 3M Part No. 07501 or 07502.

Installation

1. When all tape is removed, wipe area with isopropyl alcohol and a clean soft cloth. Make sure that all tape residue and road dirt is removed. Use soap and water to finish cleaning the surface prior to installing the tape or moulding.

2. If paint surface is damaged during emblem or moulding removal, repair as required. Refer to Section 01-00.

3. Apply the new moulding by pulling back adhesive tape protective cover about 75-100 mm (3-4 inches) at the front edge of the moulding. Do not touch or contaminate tape surface.

4. Align the new emblem or moulding with the masking tape applied during the removal procedure and gently press, removing the protective cover as you proceed forward.





5. Be sure that the moulding is lined up correctly; once the tape sticks the moulding cannot be removed.

   NOTE: Mouldings should not be installed on vehicles unless sheet metal surface temperatures exceed 80°F (27°C) and the moulding is at 70°F (21°C) minimum.

6. Remove the masking tape and wipe the area under the masking tape isopropyl alcohol to remove residue.

7. Press the moulding on with a hand roller applying a minimum of 138 kPa (20 psi) pressure to make sure of proper adhesion.

Roof Side — Sedan

Removal and Installation

1. Remove quarter trim panel (31012) and loosen edge of roof trim panel (51968) .

2. Remove screw at base of A-pillar.

3. Remove three screws along top of front roof drip rail side moulding and remove moulding.

4. Remove roof panel sound insulator (54310) , if necessary.

5. If necessary remove five nuts retaining rear roof drip rail side moulding to quarter panel and remove moulding.

6. To install, reverse Removal procedure. Tighten front moulding screws to 3 Nm (26 lb-in). Tighten rear moulding nuts to 2.5 Nm (22 lb-in).

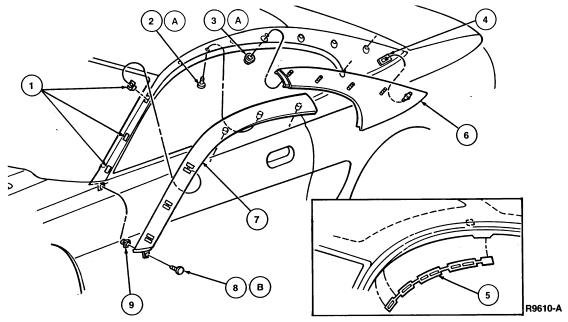

   Mouldings, Roof Side







   Item	Part Number	Description
   1	517C58-A	Retainer (3 Req'd)
   2A	N808174-S301	Screw and Washer
   3B	N620373-S36	Nut
   4	517C58-B	Retainer
   5	54310	Roof Panel Sound Insulator
   6	51698	Roof Drip Rail Side Moulding
   7	517B16	Roof Drip Rail Side Moulding
   8B	N800364-S310	Screw
   9	385701-S100	Nut
   A		Tighten to 3 Nm (26 Lb-In)
   B		Tighten to 2.5 Nm (22 Lb-In)

Roof Side — Convertible

Removal and Installation

1. Remove retaining screws at the base and top of A-pillar and remove moulding.

2. From front door side pull upward on moulding to release retaining clips.

3. To install, reverse Removal procedure. Tighten screws to 3 Nm (26 lb-in).






   Item	Part Number	Description
   1	517C58	Roof Drip Rail Side Moulding Retainer
   2A	N807684-S307	Screw
   3	517B16	Roof Drip Rail Side Moulding Screw
   4A	N800636-S310	Screw
   5	385701-S100	Nut
   A		Tighten to 3 Nm (26 Lb-In).

Seals, Roof Drip Rail Side Mouldings

Removal and Installation

1. Peel off old roof side drip front finish moulding seal (51822) as necessary.

2. Clean old adhesive material from edge of moulding.

3. Peel off paper backing on new moulding, and carefully attach new roof side drip front finish moulding seal to edge of moulding.

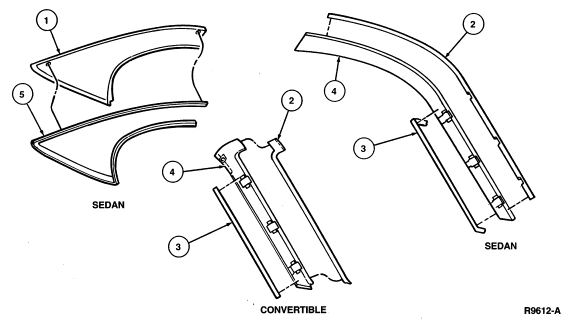

   Roof Side Drip Moulding and Seals







   Item	Part Number	Description
   1	51698	Roof Drip Rail Side Moulding
   2	51822	Roof Side Drip Front Finish Moulding Seal
   3	51824	Roof Drip Rail Side Moulding Seal
   4	517B16	Roof Drip Rail Side Moulding
   5	51790	Roof Side Rear Drip Finish Seal (Three Piece Seal)
