Carpet

Removal and Installation

1. Remove front seats. Refer to Section 01-10.

2. Remove rear seat. Refer to Section 01-10.

3. Remove console panel (045A36) . Refer to Section 01-12.

4. Remove front door scuff plate (13208) as outlined.

5. Remove cowl side trim panels (02344) as outlined.

6. Remove quarter trim panels (31012) as outlined.

7. Remove safety belts, as required. Refer to Section 01-20A.

8. Remove pushnut from weld stud on dash panel (01610) (underneath accelerator pedal).

9. Remove floor carpets (13000) .

10. If necessary remove sound insulator sections.

11. To install, reverse Removal procedure.

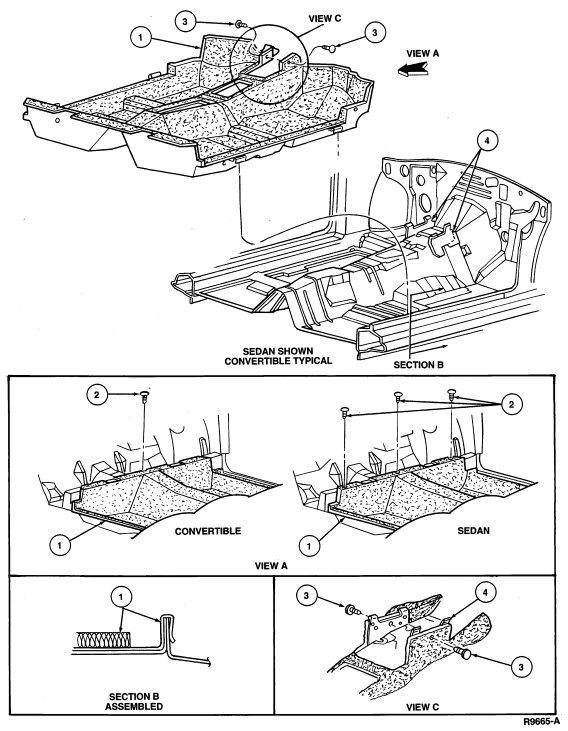

    Floor Carpet—Front







    Item	Part Number	Description
    1	13000	Floor Carpet
    2	388577-S	Push Pin (3 Req'd Sedan) (1 Req'd Convertible)
    3	N802734-SSW	Push Pin (2 Req'd)
    4	—	Instrument Panel Reference Bracket Flange Reinforcement Brace at Floor (Part of 11135)



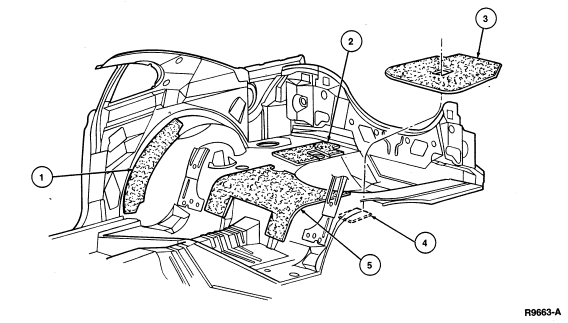

    Sound Insulators







    Item	Part Number	Description
    1	01688	Dash Panel Insulator
    2	45562	Wheelhouse Luggage Insulator
    3	11516	Luggage Compartment Insulator
    4	20552	Body Opening Sound Insulator
    5	11204	Rear Seat Floor Pan Sound Insulator



    Sound Insulators







    Item	Part Number	Description
    1	27786	Rear Floor Pan Front Insulator
    2	11204	Shock Tower Sound Absorber
    3	11516	Luggage Compartment Insulator
    4	20552	Body Opening Sound Insulator
    5	113A74	Rear Floor Pan Front Insulator

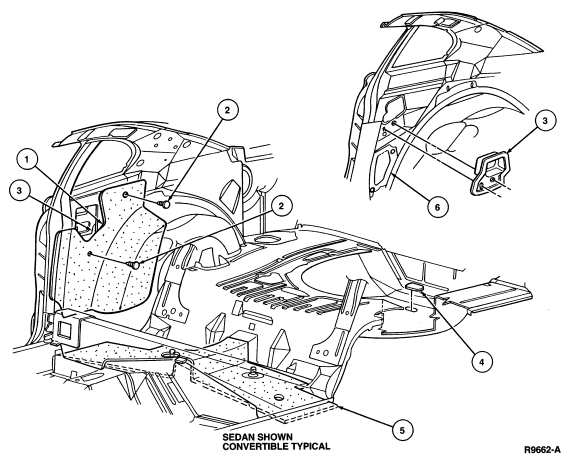

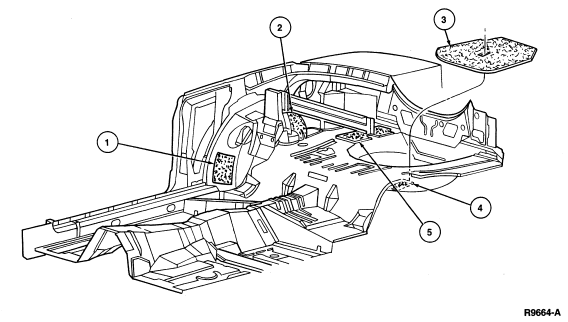

    Rear Floor and Quarter Panel Sound Insulators







    Item	Part Number	Description
    1	310A30	Sedan Quarter Trim Panel Insulator
    2	N807154-SSW	Push Pin (2 Req'd)
    3	31064	Quarter Trim Water Shield Assy
    4	ESB-M3G60-B	Tape With Polyethylene
    5	11493	Rear Seat Floor Pan Sound Insulator
    6	280A60	Lower Front Quarter Panel Shield

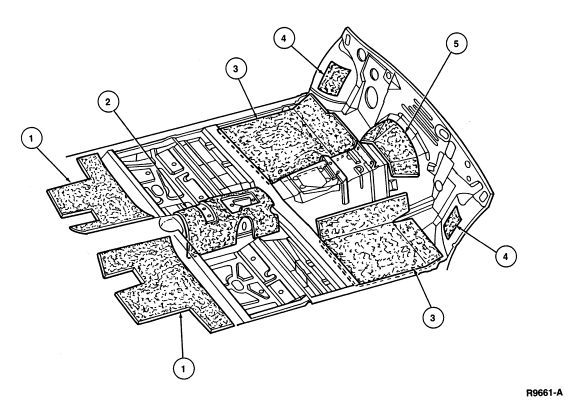

    Floor Pan Sound Insulator







    Item	Part Number	Description
    1	11493	Rear Seat Floor Pan Sound Insulator
    2	11166	Front Floor Pan Center Sound Insulator (1 Req'd)
    3	11166	Front Floor Pan Center Sound Insulator
    4	01688	Dash Panel Insulator (1 Req'd Each Side)
    5	11165	Front Floor Pan Center Sound Insulator
