Trim Panel, Package Tray

Sedan

Removal of the rear seat cushion and rear seat back assembly is necessary on all models for replacement of the liftgate door trim panel (46668) . Refer to Section 01-10 for rear seat cushion and seat back removal and installation procedures. On all models it will be necessary to remove the quarter trim panel (31012) .

Removal

1. Remove quarter trim panels as outlined.

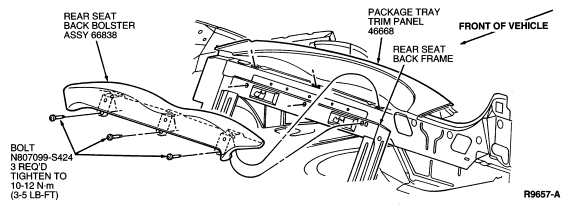

2. Remove rear seat bolster mounting bolts. Remove bolster assembly.

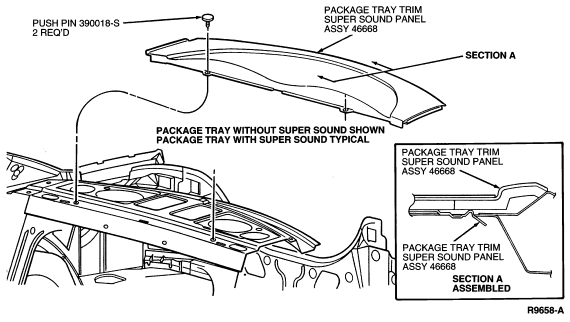

3. Remove the trim panel retaining push pins.

4. Remove liftgate door trim panel .

5. To install, reverse Removal procedure. Tighten bolts to 10.5 Nm (1-3 lb-in).
