Cover Panels, Luggage Compartment

Refer to following illustrations for Removal and Installation of luggage compartment trim panels.

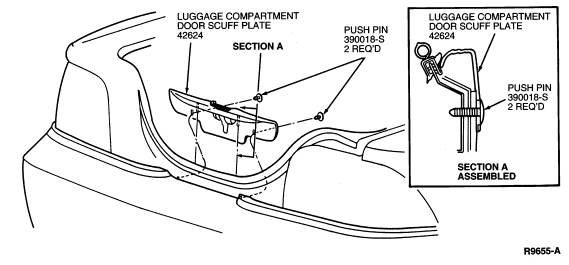

Luggage Compartment Door Scuff Plate

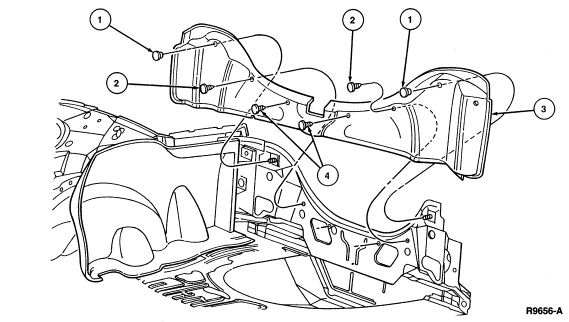

Luggage Compartment Back Lower Trim Cover

Item	Part Number	Description
1	N807315-S	Luggage Compartment Hold Down Retainer (2 Req'd)
2	390018-S	Push Pin (2 Req'd)
3	40374	Luggage Compartment Back Lower Trim Cover
4	N803678-S	Push Pin (2 Req'd)

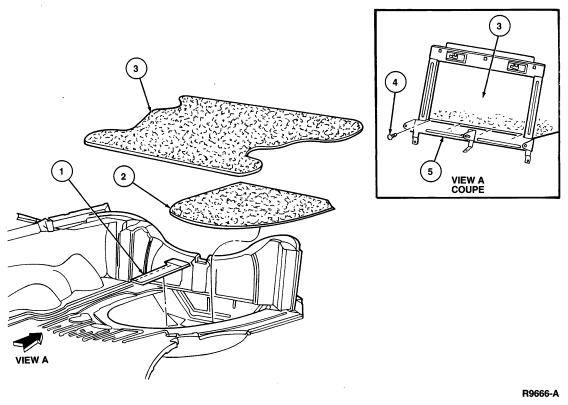

Spare Tire Cover

Item	Part Number	Description
1	17005	Tool Bag
2	45026	Spare Tire Cover
3	13046	Rear Floor Mat
4	N803678-S	Push Pin (4 Req'd Coupe Only)
5	—	Rear Seat Frame

Luggage Hold Down Net
