Section 01-05: Trim, Interior
1994 Mustang Workshop Manual
REMOVAL AND INSTALLATION

Headliner



Removal and Installation

  1. Remove inside visor (04100) , visor arm clips (04132) and bracket assemblies as outlined.
  1. Remove front door window garnish moulding (20890).
  1. Remove windshield side garnish mouldings (03598) as outlined.
  1. Remove coat hook cover screw. Remove front safety belt guide (613D10) , pull upper quarter trim panel from body and let hang from safety belt.
  1. Remove push pins.
  1. Roof headlining (51916) is glued to roof. Pry roof headlining while cutting glue from roof.
  1. Remove roof headlining from the vehicle through passenger door.
  1. To install, reverse Removal procedure.

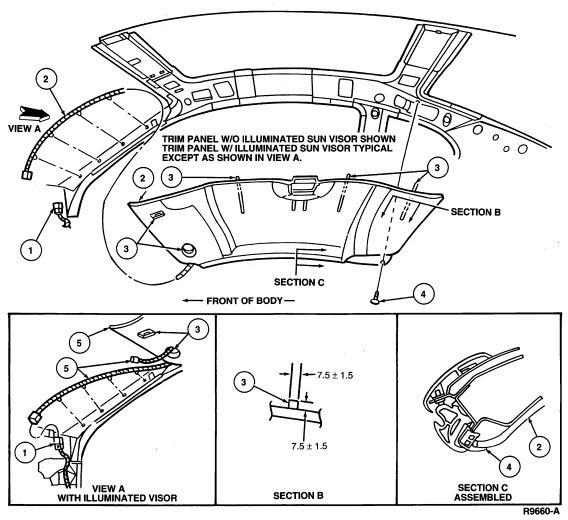

    Roof Trim Visor Panel Assembly





    Item Part Number Description
    1 13A709 Courtesy or Interior Lamp Switch Wiring
    2 Roof Trim Visor Panel Assy Without Illumination
    3 WSB-M2G355-A Adhesive
    4 N802734-S Push Pin (1 Req'd Each Side)
    5 Roof Trim Visor Panel Assy With Illumination
