Trim Panels, Door

Removal and Installation

1. Remove window regulator handle (23342) , if so equipped.

2. Carefully pry down top edge of the window regulator switch plate.

3. Lift the window regulator switch plate (14524) approximately 25 mm (1 inch) to release front of window regulator switch plate .

4. NOTE: Do not twist window regulator switch plate. Grip the window regulator switch plate at front and rear. Pull straight upward with a quick firm motion.

   Remove screws from front window regulator wiring (14631) and remove front window regulator wiring .

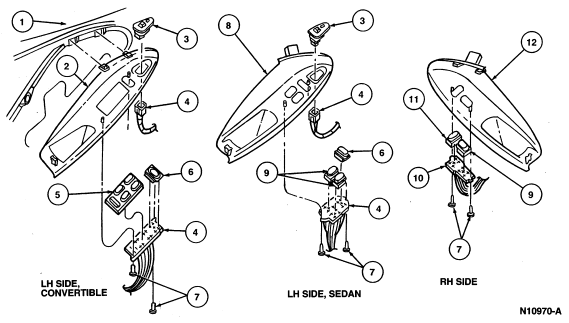

   Front Window Regulator Wiring







   Item	Part Number	Description
   1	23942	Front Door Trim Panel
   2	14524	Window Regulator Switch Plate
   3	17B676	Outside Rear View Mirror Control
   4	14631	Front Window Regulator Wiring
   5	14529	Window Regulator Control Switch
   6	14017	Front Door Lock Switch
   7	N800708-S36	Screw (2 Req'd)
   8	14524	Window Regulator Switch Plate
   9	14529	Window Regulator Control Switch
   10	14630	Front Window Regulator Wiring
   11	14017	Front Door Lock Switch
   12	14524	Window Regulator Switch Plate

5. Remove rear view mirror mounting hole cover by pulling outward.

6. Remove door inside handle cup.

7. Remove one rivet and two screws from front door trim panel (23942) .

8. Unhook front door trim panel from front door (20124) at top and locating tab slots in inner door panel by pulling upward.

9. If necessary, remove watershield.

10. To install, reverse Removal procedure.

    Front Door Trim Panel







    Item	Part Number	Description
    1	17E680	Outside Rear View Mirror Access Opening Cover
    2	214A62	Door Window Opening Front Outer Filler
    3	20124	Front Door
    4	N806399-S58	Spoon-Nut
    5	23942	Front Door Trim Panel
    6	N804592-S58	Screw (2 Req'd)
    7	N803946-8	Rivet
    8	22634	Inside Door Handle Cup
    9	N803946-8	Rivet
    10	18808	Radio Speaker

11. If necessary, remove watershield.

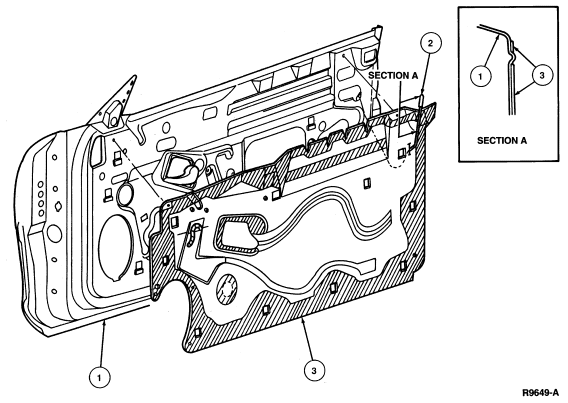

    Front Door Trim Shield







    Item	Part Number	Description
    1	20124	Front Door
    2	21852	Front Door Latch Push Button Rod
    3	237A04	Front Door Trim Shield

12. To install, reverse Removal procedure.

Electrical Connections, Door

Refer to Section 01-09 for Power Mirror, Section 01-11 for Power Windows or Section 01-14A for Power Locks.
