Section 01-05: Trim, Interior
1994 Mustang Workshop Manual
REMOVAL AND INSTALLATION

Mouldings, Interior



Windshield—Sedan

Removal and Installation

  1. Remove front door window garnish moulding (20890).
  1. Remove retaining clips RH and LH windshield side garnish mouldings (03598) at roof trim panel (51968) .
  1. Pull RH and LH windshield side garnish mouldings straight out to release clips.
  1. To install, align clips in LH and RH windshield side garnish moulding to holes and press into place.


Interior Roof Side Garnish

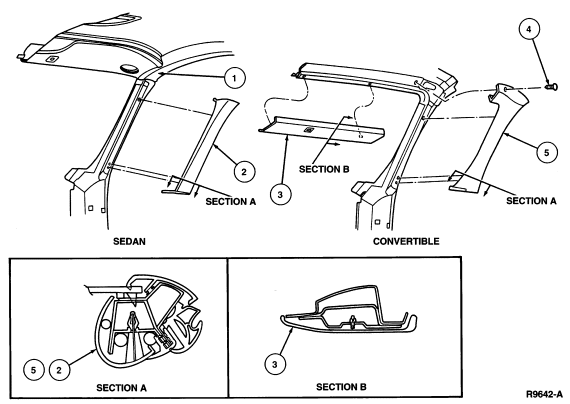

Windshield Mouldings





Item Part Number Description
1 51968 Roof Trim Panel
2 03598 Windshield Side Garnish Moulding
3 03606 Windshield Garnish Moulding
4 N806532 Push Pin (1 Req'd Each Side)
5 03598 Windshield Side Garnish Moulding


Windshield, Convertible

Removal and Installation

  1. Remove visor arm clip (04132) and release end snaps. Pull center windshield garnish moulding (03606) straight away from windshield glass (03100) to release clips.
  1. Remove inside visor (04100) as outlined.
  1. Remove push pin in LH and RH windshield side garnish mouldings .
  1. Pull windshield side garnish mouldings straight out to release clips.
  1. Remove three screws retaining windshield garnish corner moulding to windshield frame and remove moulding.
  1. To install, reverse Removal procedure.
