Weatherstrips

Front Door

Removal and Installation

1. Disengage weatherstrip retaining pins from front door (20124) at each end.

2. Carefully pull front door weatherstrip (20530) off front door by disengaging retaining pins, using a side-to-side motion on each pin.

3. Disengage door lower weatherstrip retaining pins from front door and remove front door lower weatherstrip (20758).

   NOTE: Refer to Section 01-17 for front door opening weatherstrips (20708) on convertible models.

4. Disengage front door opening weatherstrip from body at each end, then disengage front door opening weatherstrip from retainers.

5. If necessary, remove 10 screws from door opening weatherstrip retainers and remove retainers.

6. To install, reverse Removal procedure.

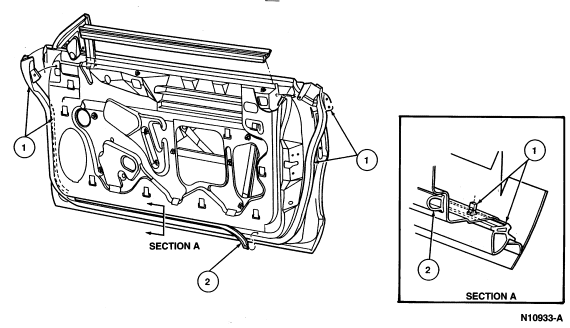

   Door Weatherstrips







   Item	Part Number	Description
   1	20530 RH 20531 LH	Front Door Weatherstrip
   2	20758 RH 20759 LH	Front Door Lower Weatherstrip

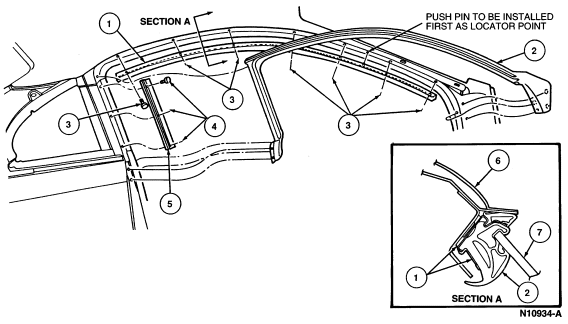

   Door Opening Weatherstrips







   Item	Part Number	Description
   1	51238 RH 51239 LH	Roof Side Rail Weatherstrip
   2	20708 RH 20709 LH	Front Door Opening Weatherstrip
   3	N807844-S100	Screw (7 Req'd)
   4	N803733-S100	Rivet (3 Req'd)
   5	24510 RH 24511 LH	Center Body Pillar Retainer
   6	A50502	Roof Panel
   7	58511	Front Door Window Glass
