Hinge, Door

Removal and Installation

1. Support the front door (20124) using Rotunda Door Rack 103-00027 or equivalent.

2. Mark the location of the hinge on the front door and on the body.

3. Remove the hinge-to-body retaining screws.

4. Remove the hinge-to-door retaining screws and remove the hinge.

5. To install, reverse Removal procedure. Align front door as outlined. Tighten hinge retaining screws to 25-35 Nm (16-26 lb-ft).

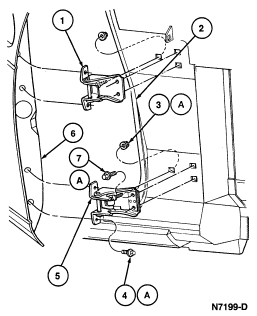

   Hinge, Door







   Item	Part Number	Description
   1	22800	Front Door Upper Hinge
   2A	N801193-S2	Nut and Washer (2 Req 'd)
   3A	N803417-S2	Screw and Washer (2 Req'd)
   4	—	Hinge and Check Assy
   5	20124	Front Door
   A		Tighten to 25-35 Nm (18-26 Lb-Ft)
