Cowl Vent Screens

Removal and Installation

1. Remove both windshield wiper pivot arms (17526) from vehicle. Refer to Section 01-16.

2. Remove six screws retaining cowl vent screen (018A16) to body from the top of cowl vent screen .

3. Carefully raise cowl vent screen from the vehicle and disconnect windshield washer hose (17A605) from windshield washer nozzle jet and bracket (17603) and remove the cowl vent screen .

4. To install, reverse Removal procedure. Tighten screws to 1.3-2.0 Nm (11.5-18 lb-in).

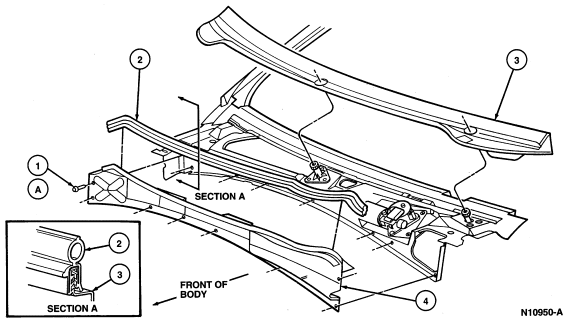

   Cowl Vent Screen







   Item	Part Number	Description
   1A	N802141-S310	Screw and Washer (8 Req'd)
   2	16A942	Hood Pad
   3	018A16	Cowl Vent Screen
   4	021B26	Cowl Vent Deflector Extension
   A		Tighten to 1.4-2.0 Nm (12-18 Lb-In)
