Radiator GOP Reinforcement

Removal and Installation

1. Open hood (16612) .

2. Remove front bumper cover (17D957) . Refer to Section 01-19.

3. Remove headlamps (13008) and parking lamps (13200) . Refer to Section 17-01.

4. Remove six push pins from radiator upper sight shield (8C291) and remove shield.

5. Remove nine screws retaining radiator grille opening panel reinforcement (8A284) to radiator support (16138) and remove radiator grille opening panel reinforcement .

6. To install, reverse Removal procedure. Tighten screws to 5.2-7.2 Nm (46-63 lb-in).

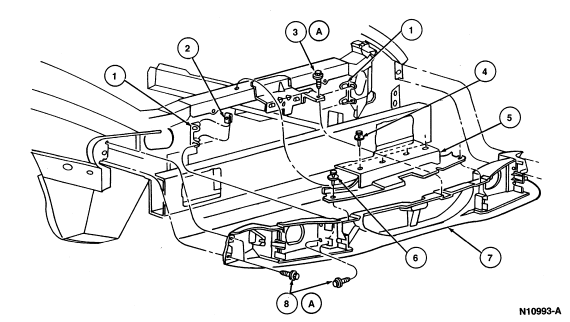

   Radiator Grille Opening







   Item	Part Number	Description
   1	8B455	Radiator Grille Opening Panel Bracket
   2	N623332-S301	Nut
   3A	N808138-S307	Screw
   4	N802781-S	Push Pin
   5	8C291	Radiator Upper Sight Shield
   6	N804570-S	Push Pin
   7	8A284	Radiator Grille Opening Panel Reinforcement
   8A	N800394-S301	Screw (8 Req'd)
   A		Tighten to 5.2-7.2 Nm (46-63 Lb-In)
