Section 01-02: Body Panels, Front End | 1994 Mustang Workshop Manual |
Removal and Installation

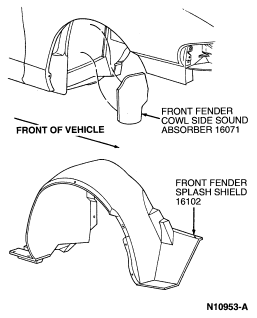

The front fender splash shields (16102)
are held in place by push pins and/or

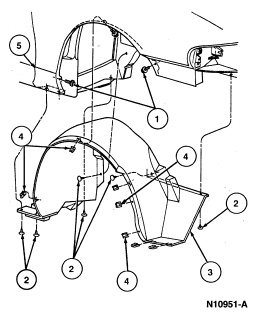

screws. To remove or install, refer to illustration.
| Item | Part Number | Description |
|---|---|---|
| 1 | 56912-S55 | Screw (4 Req'd) |
| 2 | 388930-S | Push Pin |
| 3 | 16102 | Front Fender Splash Shield |
| 4 | N802538-S100 | U-Nut (4 Req'd) |
| 5 | 16005 | Front Fender |
