Lubrication Points

Typical chassis and engine service and lubrication points for current production vehicles are shown in the following illustrations. Vehicles with optional or special equipment may have slightly different or additional lubrication points.

A table of recommended lubricants is included at the end of this Section.

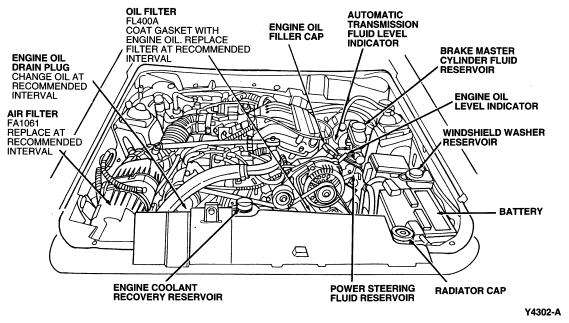

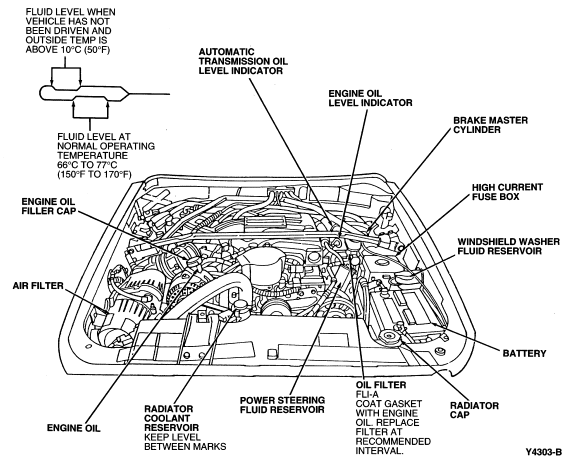

Service Points—Engine Compartment

Service Points—Chassis

Rear axle lubricants must be replaced at 100,000 miles (160,000 km) or if the axle has been submerged in water. Otherwise, the lubricants should not be checked or changed unless a leak is suspected or service is required.
