Remove snap-in trim moulding in floor console to expose four control
assembly retaining screws.

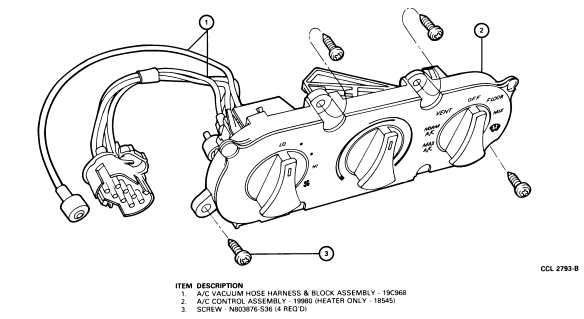

Manual A/C-Heater Control Assembly (Front)
Remove four screws which attach control assembly to instrument panel.
Roll control out of opening in console. Disconnect fan switch connectors
and temperature control cable. Disconnect vacuum hose connector and electrical
connector from back of function selector knob. Disconnect connector for control
assembly illumination bulbs.
Remove control assembly.
Installation
Connect temperature cable to geared arm on temperature control.
Install electrical connector at the following locations: blower switch,
control assembly illumination bulbs and function selector switch.
Install vacuum harness connector for function selector knob.
Roll control assembly into position against instrument panel. Install four
retaining screws.
