Section 01-20A: Restraints, Active
1993 Mustang Workshop Manual
REMOVAL AND INSTALLATION

Inboard Buckle Assembly, Rear



Replacement

  1. Remove bolt and buckle or tongue assembly from vehicle.
  1. Install new assembly into vehicle.

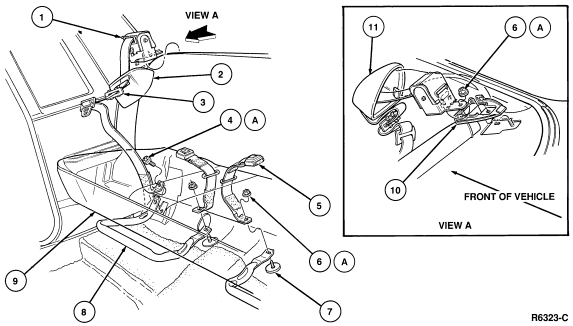

2-Door





Item Part Number Description
1 611B68 Safety Belt and Retractor Assy
2 13D66 Cover Assy
3 601B30 Bezel
4A 389370-S100 Bolt (1 Req'd Each Side)
5 60045 Safety Belt and Buckle Assy
6A N800937-S190 Nut (1 Req'd)
7 60122 Insulator
8 600A86 Rear Seat Cushion Support Assy
9 60026 Cushion Assy
10 613D88 Retainer Assy
11 613C46 Cover Assy
A Tighten to 30-43 Nm (23-32 Lb-Ft)

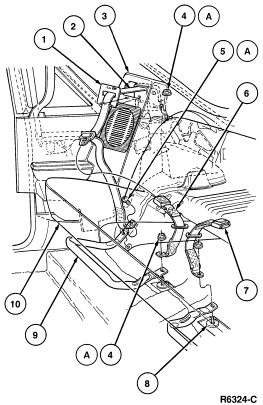

3-Door





Item Part Number Description
1 01B30 Bezel
2 611B68 Safety Belt and Retractor Assy
3 278A08 Quarter Trim Panel
4A N800937-S190 Nut (2 Req'd Each Side)
5A 389370-S100 Bolt (1 Req'd Each Side)
6 60044 Safety Belt and Buckle Assy
7 60045 Safety Belt and Buckle Assy
8 60122 Insulator
9 60634 Rear Seat Cushion Support
10 60026 Cushion Assy
A Tighten to 30-40 Nm (23-29 Lb-Ft)

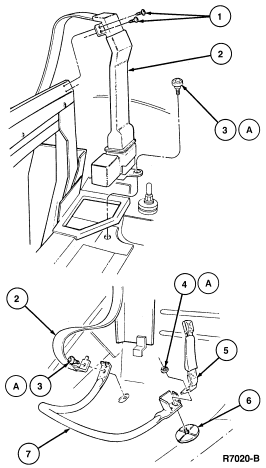

Convertible





Item Part Number Description
1 N805449-S58 Screw
2 611B68 RH
611B60 LH 		Belt and Buckle Assy
3A 389370-S100 Bolt
4A N800937-S190 Nut
5 60044 RH
60045 LH 		Belt and Buckle Assy
6 60122 Insulator
7 600A86 Support Assy
A Tighten to 30-40 Nm (23-29 Lb-Ft)
