Panel Stowage

 CAUTION: To avoid damage to the panel, do not place heavy or sharp objects on top of the bag when the panel is stored.

Whenever the glass panel is removed, it should only be stored in the stowage bag provided. The glass panel should never be stored anywhere else in the vehicle. The stowage bag is a compartment that can safely accommodate the removable glass and sun shade.

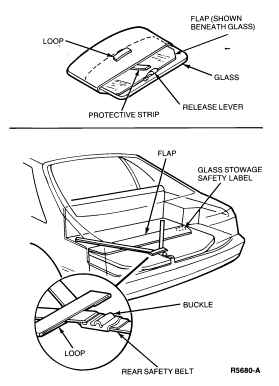

1. With bag open and flap toward you, place glass panel in bag with latch release lever toward flap. Slip protective strip between latch release lever and glass for protection of glass surface.

2. Close flap and place loaded bag on luggage compartment floor with flap up and toward the front of vehicle.

3. Feed buckle through loop on bag.

4. Complete stowage by feeding end of rear belt into buckle and tighten by pulling end of belt rearward.
