Section 01-17A: Convertible
1993 Mustang Workshop Manual
OPERATION

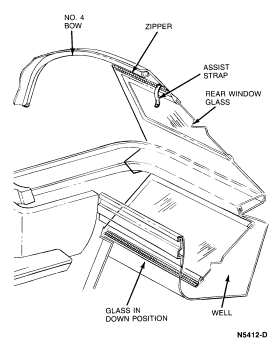

To Lower Back Window

 CAUTION: To prevent rear window damage, never operate the vehicle with the window unzipped and hanging by the assist strap or resting on the rear seat back.

  1. Ensure the folding top compartment area is clean and free of objects.
  1. Unlatch top to relieve tension.
  1. Unzip the rear window zipper.



  1. Unsnap the assist straps from the No. 4 bow (RH and LH sides) and carefully stow the window behind the rear seat back making sure that the assembly rests free in the bottom of the top stowage compartment.
  1. Latch top to restore tension.
