Section 01-17A: Convertible
1993 Mustang Workshop Manual
OPERATION

Dust Cover Installation

  1. Center dust cover over lowered top, arranging pads over frame and clamps.

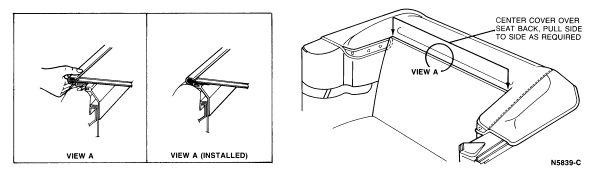

  1. Insert plastic tab at front of dust cover into channel at top edge of rear seat, working across vehicle.

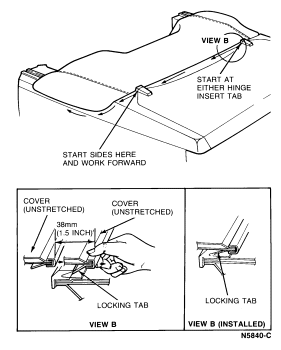

  1. After making sure that cover is centered, pull cover backward and insert tab into slit between rear mouldings on vehicle upper back panel near luggage compartment hinge.



  1. Working from one hinge to the other, insert tab into moulding slit. Use one hand to apply pressure and the other to slide tab into place.
  1. After making initial insertion, inspect to ensure cover is centered side-to-side.
  1. Install side tabs from hinges forward.
  1. Engage the three snaps inside the vehicle on each side beginning at the front and working toward the rear. Tuck the end of the flap between the side trim panel and the rear seat back.
