Section 01-10A: Seats and Tracks
1993 Mustang Workshop Manual
REMOVAL AND INSTALLATION

Seat, Rear

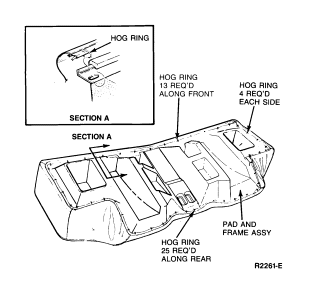

Cushion Cover



Removal

  1. Remove the rear seat cushion as outlined.
  1. Cut the hog rings from the cushion cover and remove the cover.


Installation

  1. Transfer all bolster tiedown wires to their respective listings in the new cover assembly.
  1. Position the cover over the cushion assembly.
  1. Install the necessary hog rings. Install the cushion assembly as outlined.

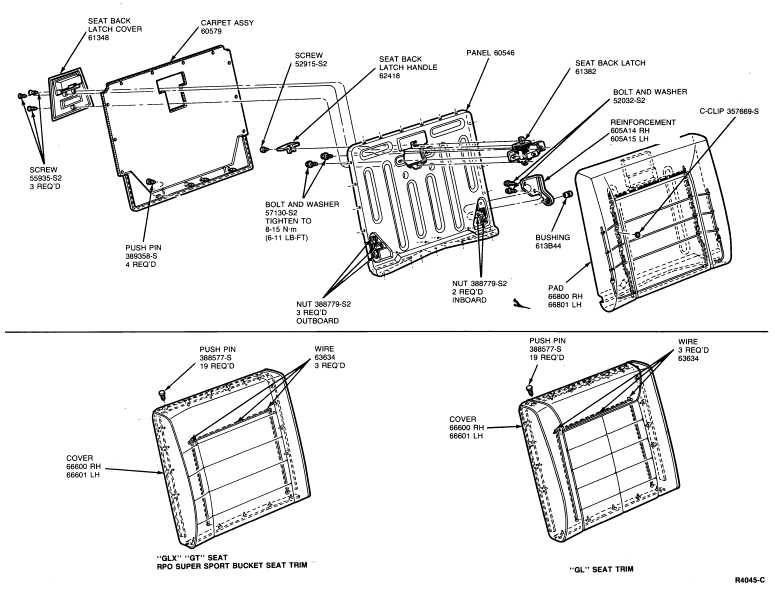

Back Cover



Removal

  1. Remove the rear seat cushion and rear seat back assembly as outlined.
  1. Remove push pins from their respective retainers on the rear side of the seat back. Remove carpet and panel assemblies.
  1. With the front side down on a bench remove the push pins that retain the cover to the spring assembly.
  1. Remove the cover from the seat back assembly.


Installation

  1. Transfer all bolster tiedown wires to their respective listings in the new cover assembly.
  1. Position the cover over the cushion assembly and install push pins.
  1. Install panel and carpet assemblies to seat back using necessary push pins.
  1. Install the seat back and seat cushion as outlined.
