Extension, Load Floor

Removal

1. Remove seat back and folding arm as outlined.

2. Remove seven screws retaining extension to load floor and remove extension.

Installation

NOTE: Two outboard screws are different from the other five inboard screws.

1. Position extension and install seven screws.

2. Install seat back and folding arm as outlined.

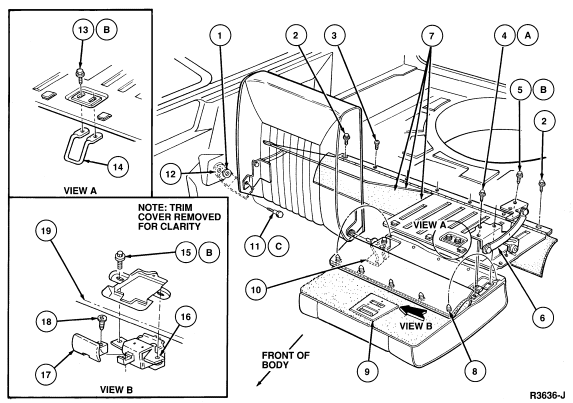

   Item	Part Number	Description
   1	351349-S2	Washer
   2	56940-S36X	Screw and Washer
   3	382413-SWX	Screw and Washer (5 Req'd)
   4A	57032-S2	Screw and Washer (3 Req'd Each Side)
   5B	57472-S2	Screw and Washer (2 Req'd Each Side)
   6	605B30	Folding Arm Assy
   7	613A82	Rear Seat Back Load Floor Extension
   8	3888577-S	Push Pin (10 Req'd)
   9	—	Latch Trim Cover
   10	613B90	Center Pivot Bracket
   11C	387966-S2	Bolt
   12	60514	Pivot Bracket
   13B	57030-S2	Screw and Washer (2 Req'd)
   14	62440	Striker
   15B	57030-S2	Screw and Washer Assy (2 Req'd)
   16	61382	Latch Assy
   17	62418	Latch Handle
   18	52915-S2	Screw
   19	—	Seat Back
   A		Tighten to 4-5 Nm (35-44 Lb-In)
   B		Tighten to 8-14 Nm (6-10 Lb-Ft)
   C		Tighten to 16-27 Nm (12-20 Lb-Ft)
