Section 18-01: Wiring and Circuit Protection | 1993 Mustang Workshop Manual |

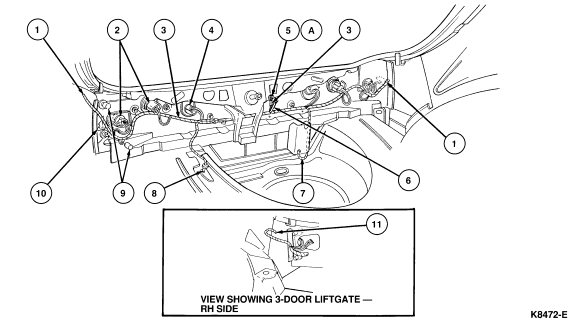

| Item | Part Number | Description |
|---|---|---|
| 1 | 14405 | Wiring Assy to Wheel House Wiring |
| 2 | 13465-B | Bulb Assy (4 Req'd) |
| 3 | 14405 | Wiring Assy |
| 4 | C3DB-13465-A | Bulb Assy (2 Req'd) |
| 5A | N80146-S36MG | Screw |
| 6 | — | To Cargo Lamp (3-Door Liftgate) |
| 7 | — | To Inertia Switch |
| 8 | — | To Fuel Tank Sender |
| 9 | N804118-S | Stud Protector Cap (2 Req'd) |
| 10 | C8MB-13465-A or 13465-C |
Bulb Assy (2 Req'd) |
| A |
Tighten to 2.6-3.6Nm (24-31 Lb-In) |
