Section 18-01: Wiring and Circuit Protection | 1993 Mustang Workshop Manual |

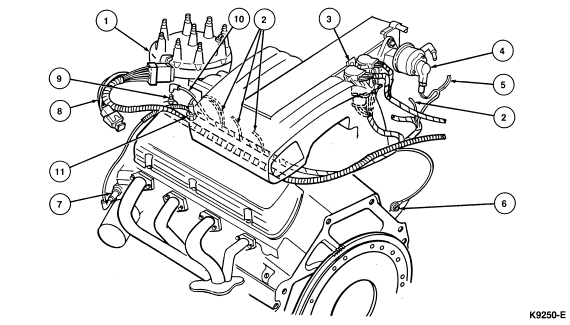

| Item | Part Number | Description |
|---|---|---|
| 1 | 12A297 | Distributor Ignition |
| 2 | — | To Fuel Injectors |
| 3 | 14A163 | Retainer |
| 4 | — | To Exhaust Gas Recirculation Valve Positioner |
| 5 | — | To Throttle Position Sensor |
| 6 | — | Heated Oxygen Sensor Ground Connection |
| 7 | 9D290 | Oil Pressure Sender |
| 8 | 12A581 | Wiring Harness Assy |
| 9 | 10884 | Engine Coolant Temperature Sender |
| 10 | 9D930 | Wiring Harness Assy |
| 11 | 12697 | Intake Air Temperature Sensor |
