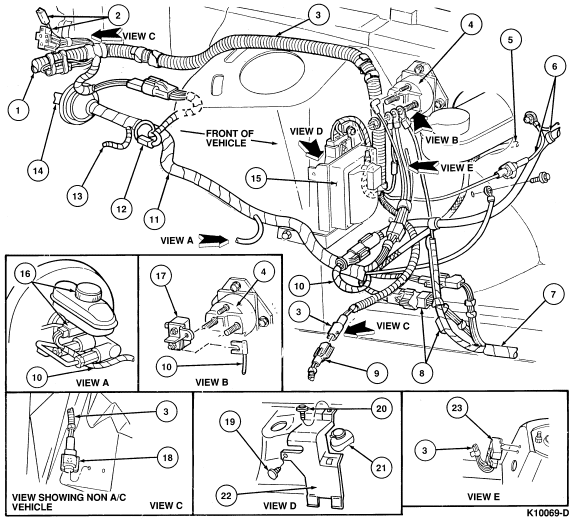

Section 18-01: Wiring and Circuit Protection | 1993 Mustang Workshop Manual |
| Item | Part Number | Description |
|---|---|---|
| 1 | — | To RH Fender Apron Wiring |
| 2 | 14489 | Data Link Connector |
| 3 | 12A581 | Wiring Harness Assy |
| 4 | 11450 | Starter Motor Relay |
| 5 | — | To Windshield Washer Reservoir |
| 6 | 14301 | Cable Assy |
| 7 | — | To Rear Radiator Support Wiring |
| 8 | 14290 | Wiring Harness Assy |
| 9 | 19D887 | Wiring Harness Assy |
| 10 | 14401 | Wiring Harness Assy |
| 11 | — | To Brake Warning Switch |
| 12 | 15K702 | Wiring Harness Assy |
| 13 | — | To Windshield Washer Motor |
| 14 | — | To LH Cowl Wiring |
| 15 | 12029 | Ignition Coil Assy |
| 16 | 2L414 | Brake Level Warning Switch |
| 17 | 11433 | Starter Circuit Breaker and Bracket Assy |
| 18 | 14A66C | Plug |
| 19 | 14A163 | Retainer |
| 20 | 381801-S55 | Screw |
| 21 | 17618 | Windshield Washer Reservoir |
| 22 | 14A088 | Shield |
| 23 | 14A593 | Cover Assy |
