Section 18-01: Wiring and Circuit Protection
1993 Mustang Workshop Manual
REMOVAL AND INSTALLATION

Alternator Connectors



2.3L Engine, 75 Amp Alternator






100 Amp

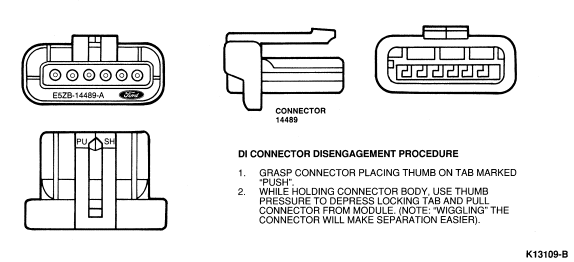

Distributor Ignition (DI) Module 12A297 Connectors

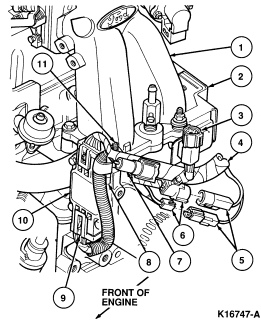

2.3L Engine Module Connector





Item Part Number Description
1 09425 Intake Manifold
2 14A282 Bracket Assy
3 12A581 Wiring Assy
4 12A690 Wiring Harness Assy
5 12A127 Crankshaft Position Sensors
6 6C351 Timing Assy Connectors
7 — Service Tachometer Connector
8 — Spout Plug
9 — Ignition Module Connector
10 12A199 Ignition Control Module
11 — Upper Intake Manifold Stud

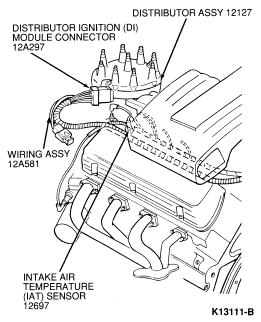

5.0L Engine Module Connector




The illustrations in this Section show the complete wiring harness installation. Refer to the illustrations for the harness being replaced while performing the following Removal and Installation procedures.



Removal

  1. Disconnect battery ground cable.

    NOTE: Refer to Section 01-05 if it is necessary to remove any trim panels to gain access to the harness.

  1. Disconnect all wiring harness connectors.
  1. Disengage harness from all locators, straps and/or clips as necessary, including ground wire eyelets, and remove harness from vehicle.


Installation

  1. Position harness in vehicle. Ensure harness is engaged in all locators, straps and/or clips.
  1. Connect all harness connectors to components or other harnesses as necessary.
  1. Secure ground eyelets to body as necessary.
  1. Connect battery ground cable and check all applicable circuits for proper operation.
  1. Install any trim removed during harness removal. Refer to Section 01-05.

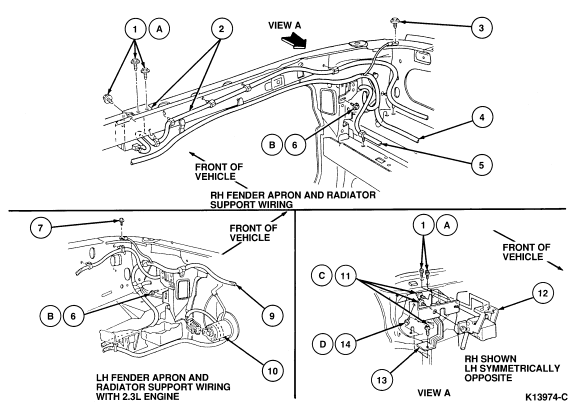

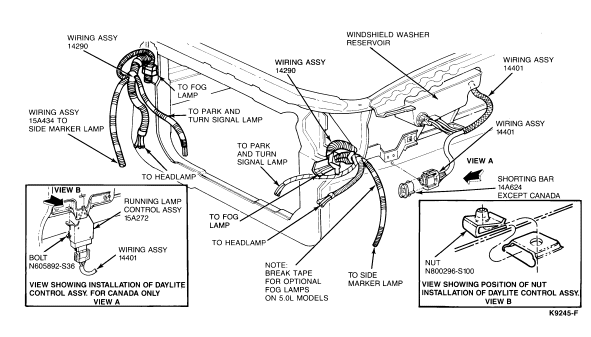

Radiator Support, Front






Radiator Support, Rear





Item Part Number Description
1A N806327-S-190 Screw
2 14B006 Air Bag Center Sensor Assy
3 N801846-S36MG Screw (2 req'd)
4 14290 Wiring Assy (wire take out for 5.0L models)
5 14B004 Air Bag Sensor Assy RH
6B N803953-S36MG Screw (2 req'd)
7 N801846-S36MG Screw (2 req'd)
8 LH14B005 Air Bag Sensor Assy
9 14290 Wiring Assy
10 8K620 Electric Fan Motor
11C 611624-S55 Screw (3 req'd)
12 14B005 Air Bag Sensor (2 req'd)
13 14B190 RH
14B191 LH 		Reinforcement
14D W611624-S55 Screw (2 req'd)
A    Tighten To 7-12 Nm (6-8 Lb-Ft)
B    Tighten to 4.0-5.6 Nm (36-49 Lb-In)
C    Tighten To 9-14 Nm (7-10 Lb-Ft)
D    Tighten To 2-3 Nm (18-26 Lb-In)
