Section 17-01: Lighting, Exterior
1993 Mustang Workshop Manual
REMOVAL AND INSTALLATION

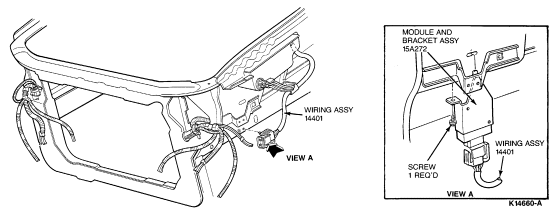

Module and Bracket Assembly, DRL



Removal and Installation

  1. Disconnect DRL electrical connector.
  1. Remove screw retaining module and bracket assembly to fender apron.
  1. Remove module and bracket assembly from fender apron by swinging module connector outboard to allow bracket to disengage from slot in apron.
  1. To install, reverse Removal procedure.
