Fog Lamps

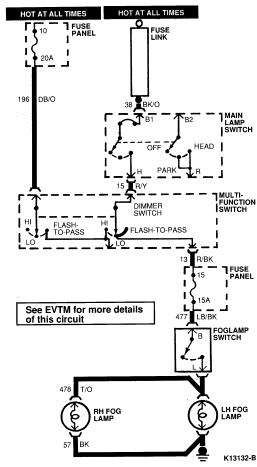

The fog lamp system consists of the two fog lamps, a switch assembly and a wiring assembly. The components are connected as shown.

The fog lamp switch is located on the upper LH side of the instrument panel below headlamp switch.

• Push switch in to turn fog lamps on.
• Pull switch out to shut off fog lamps.

NOTE: If vehicle is not equipped with fog lamps the switch will not be labeled with an ON symbol. The switch will also be stationary and will not move in or out.
