Section 15-01: Radio and Tape Chassis | 1993 Mustang Workshop Manual |

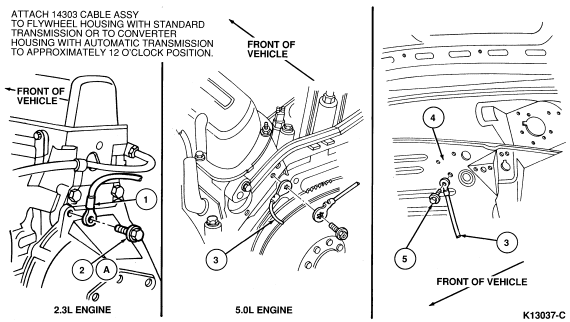

The following illustration shows the radio interference suppression
ground wire installations.
| Item | Part Number | Description |
|---|---|---|
| 1 | 14303 | Engine Ground Cable |
| 2A | — | Existing Bolt |
| 3 | 14303 | Ground Cable to Dash Panel |
| 4 | — | Dash Panel |
| 5 | N801846-S36MG | Screw |
| A | Tighten to 23.0-36.6 Nm (17-27 Lb-Ft). |
