Section 13-02: Speedometer/Odometer | 1993 Mustang Workshop Manual |

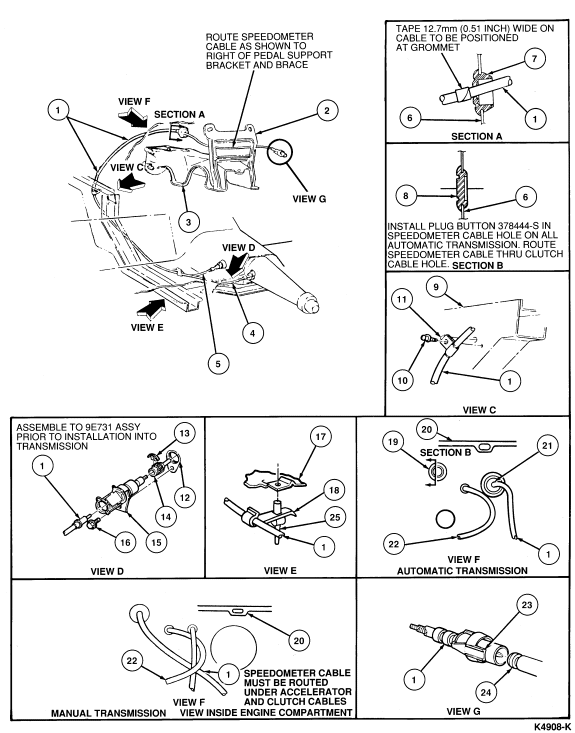

Because of the increasing complexity of speedometer cable assemblies, and
the importance of proper routing during installation, installation and routing
instructions are shown in the illustration.
| Item | Part Number | Description | Item | Part Number | Description |
|---|---|---|---|---|---|
| 1 | 9A820 | Speedometer Cable | 13 | 17292 | Clip |
| 2 | 45C54 | Brake Pedal Support Bracket Brace | 14 | 17271 | Transaxle Extension |
| 3 | 3676 | Brake Pedal Support Bracket | 15 | 9E731 | Vehicle Speed Sensor (VSS) |
| 4 | — | To Automatic Transaxle | 16 | 57622 | Bolt |
| 5 | — | To Manual Transaxle | 17 | — | Underbody |
| 6 | — | Dash Panel | 18 | N807302 | Clip |
| 7 | — | Part of 9A820 Speedometer Cable Assy | 19 | — | Speedometer Cable Hole |
| 8 | 378444 | Plug Button | 20 | — | Cowl Flange |
| 9 | — | Front LH Sidemember Extension | 21 | — | Clutch Cable Hole |
| 10 | 55981 | Bolt | 22 | — | Accelerator Cable |
| 11 | 386172 | Retainer | 23 | — | Thumb Latch |
| 12 | — | To Speedometer Gear | 24 | 17255 | Speedometer Assy |
| 25 | 388869 | Rivet |
