Temperature Control Cable

The temperature control cable is self-adjusting with the rapid rotation of the temperature control knob to its fully WARM position. To prevent kinking of the control cable wire, a preset adjustment should be made before attempting to perform the self-adjustment operation. The preset adjustment may be performed either in the vehicle, with the cable installed or before installation.

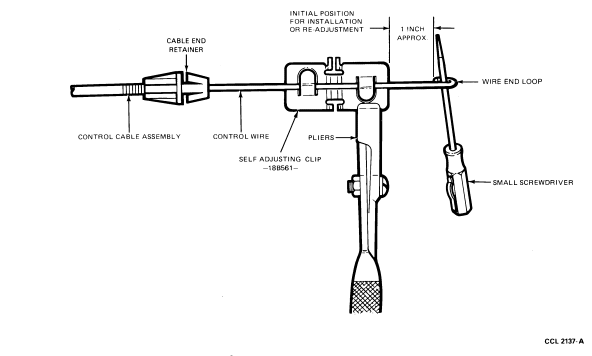

Control Cable Preset Adjustment
