Continuity Test

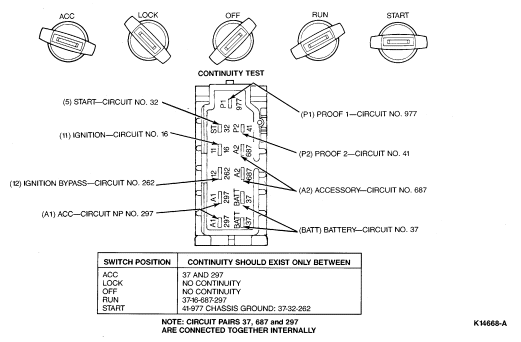

Disconnect multiple connector by spreading apart the locking fingers on each end of the connector shell while pulling to disengage from the ignition switch. Test the switch continuity as described in the following illustration. Connect a self-powered test lamp or ohmmeter between the blade terminals indicated on the chart. No continuity between any blade and chassis ground should exist in any switch position except the proof Circuits 41 and 977 in the START position only.

For an "engine won't crank" condition, determine if the condition exists with the shift lever in both PARK and NEUTRAL positions before performing the ignition switch continuity tests. If the "no-crank" condition occurs in one shift lever position but not the other, a more probable cause is the neutral start switch located in the transmission.
